Iseki TH25
The Iseki TH25 is a tractor produced by Iseki. It is equipped with a 89.3 ci 1.5 L engine. The rated power output is 24.7 hp 18.4 kW. Transmission: 12 forward and reverse. Operating weight: 1984 to 2370 pounds.
Engine Power
24.7 hp
18.4 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
12 forward and reverse
Operating Weight
1984 to 2370 pounds
Iseki TH25 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004 - 2010
TH SeriesCompact Utility tractor |
|---|---|
2004 - 2010 | |
TH Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TH25 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
Iseki TH25 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Iseki TH25 Power | |
|---|---|
Engine | 24.7 hp
18.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 523@2500 |
829@2500 | |
1218@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 57.1 inches
145 cm |
Weight | 1984 to 2370 pounds |
Front tire | 7-14 |
Rear tire | 9.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual TH Series (1716-912-003-5G) published in 2004 | |
TH25B Special published in 2006, by Iseki |
Engine
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Iseki E3CF |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Bore/Stroke | 3.39x3.30 inches
86 x 84 mm |
Power | 24.7 hp
18.4 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and reverse gear
Type | gear |
Gears | 12 forward and reverse |
Clutch | dry disc |

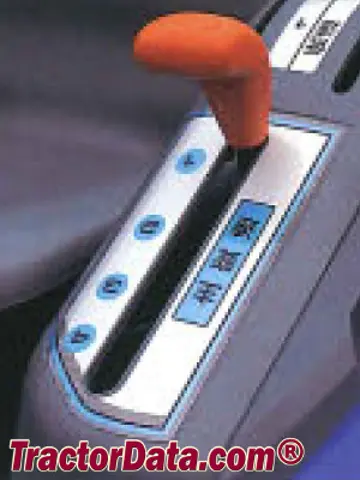

Four gears in three ranges with mechanical shuttle. | |
 | |
Dimensions
Iseki TH25 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 9.4-24 |
Dimensions | |
|---|---|
Wheelbase | 57.1 inches
145 cm |
ROPS Length | 105.9 inches
268 cm |
Cab Length | 108.3 inches
275 cm |
ROPS Width | 46.5 inches
118 cm |
Cab Width | 49 inches
124 cm |
Height (ROPS) | 75.6 inches
192 cm |
ROPS Weight | 1984 lbs
899 kg |
Cab Weight | 2370 lbs
1075 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 37.8 inches
96 cm |
Rear tread | 34.7/40.8 inches
88/103 cm |
Photos

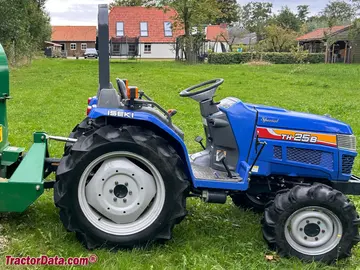

Iseki TH25B Special compact utility tractor, right side.
Iseki TH25B Special compact utility tractor, left side.
Iseki TH25 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TH25.
Converted Equivalents:
Horsepower (HP)24.7 hp
Kilowatts (kW)18.4 kW
Metric Horsepower (PS / CV)25 PS
