Iseki TJ65
The Iseki TJ65 is a tractor produced by Iseki. It is equipped with a 180.3 ci 3.0 L engine. The rated power output is 64.1 hp 47.8 kW. Transmission: 24 forward and reverse. Operating weight: 5600 lbs 2540 kg.
Engine Power
64.1 hp
47.8 kW
Fuel & Capacities
23.8 gal
90.1 L
Transmission
24 forward and reverse
Operating Weight
5600 lbs
2540 kg
Iseki TJ65 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004 - 2009
TJ SeriesUtility tractor |
|---|---|
2004 - 2009 | |
TJ Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Utility tractor | |
Variants | |
|---|---|
TJ65 | wheel tractor |
TJ65C | half-track |
Iseki TJ65 Engine | |
|---|---|
Iseki 3.0L 4-cyl diesel | |
Fuel tank | 23.8 gal
90.1 L |
Engine details ...  | |
Iseki TJ65 Transmission | |
|---|---|
24-speed 8-speed power shift | |
Transmission details ...  |
Iseki TJ65 Power | |
|---|---|
Engine | 64.1 hp
47.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet discs brakes | |
Cab with air-conditioning. | |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
JIS2 | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 566@2600 |
733@2600 | |
1062@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 84.7 inches
215 cm |
Weight | 5600 lbs
2540 kg |
Front tire | 9.5-22 |
Rear tire | 12.4-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 72 |

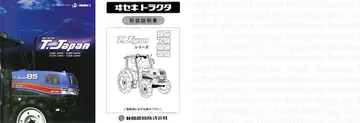

References | |
|---|---|
 | |
T.Japan published in 2008, by Iseki | |
T.Japan 85 75 65 55 (1719-912-012-4F) |
Engine
Engine Detail — 180.3 ci / 3.0 L Diesel
Manufacturer | Iseki E4DE |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 180.3 ci
3.0 L |
Bore/Stroke | 3.82x3.94 inches
97 x 100 mm |
Power | 64.1 hp
47.8 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission

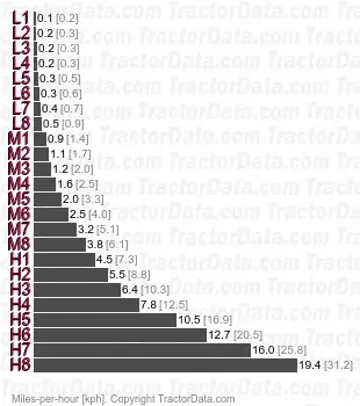

Transmission — 24 forward and reverse 8-speed power shift
Type | 8-speed power shift |
Gears | 24 forward and reverse |
Eight push-button power shift gears in three ranges with power shuttle. Automated AT shift mode. | |
 | |
Dimensions
Iseki TJ65 Tires | |
|---|---|
Ag front | 9.5-22 6PR |
Ag rear | 12.4-36 6PR |
Dimensions | |
|---|---|
Wheelbase | 84.7 inches
215 cm |
Length | 149.4 inches
379 cm |
Width | 65.8 inches
167 cm |
Height | 98 inches
248 cm |
Weight | 5600 lbs
2540 kg |
Ground clearance | 16.9 inches
42 cm |
Front tread | 47.8 to 62.2 inches
121 to 157 cm |
Rear tread | 48 to 63.4 inches
121 to 161 cm |
Photos

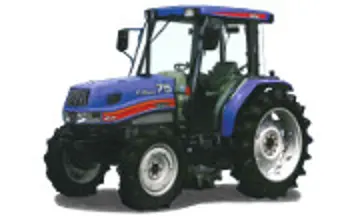

Iseki TJ65 tractor photo
Iseki TJ65 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TJ65.
Converted Equivalents:
Horsepower (HP)64.1 hp
Kilowatts (kW)47.8 kW
Metric Horsepower (PS / CV)65 PS
