Iseki TK25

The Iseki TK25 is a tractor produced by Iseki. It is equipped with a 89.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 24.7 hp / 18.4 kW. Transmission: 16 forward and reverse. Operating weight: 2701 to 3031 pounds.

Engine Power
Diesel (listed): 24.7 hp / 18.4 kW
Fuel & Capacities
7.9 gal 29.9 L
Transmission
16 forward and reverse
Operating Weight
2701 to 3031 pounds

Overview

Iseki TK25 tractor photo
1996 - 2001 TK SeriesCompact Utility tractor TK Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TK25 Engine
Isuzu 1.5L 3-cyl diesel
Fuel tank
7.9 gal 29.9 L
Engine details ...
Iseki TK25 Transmission
16-speed
Transmission details ...
Iseki TK25 Power
Engine
24.7 hp 18.4 kW
Mechanical
Four-wheel drive
Two-post folding ROPS. Cab optional.
Tractor hitch
Rear Type
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
565@2500
824@2500
1060@2500
1244@2500
Dimensions & Tires
Wheelbase
64.6 inches 164 cm
Weight
2701 to 3031 pounds
Front tire
7-14
Rear tire
9.5-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
55
References
TK25 references literature
TK Series published in 1998, by Iseki
TK Series published in 2000, by Iseki

Engine

Engine Detail — 89.3 ci / 1.5 L Diesel

Manufacturer
Isuzu E3CF
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
89.3 ci 1.5 L
Power
24.7 hp 18.4 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

Dimensions

Iseki TK25 Tires
Standard tires (ag)
Front: 7-14. Rear: 9.5-24
Dimensions
Wheelbase
64.6 inches 164 cm
Length
117.7 inches 298 cm
Width
52 inches 132 cm
Height
75.6 inches 192 cm
ROPS Weight
2701 lbs 1225 kg
Cab Weight
3031 lbs 1374 kg
Ground clearance
11.8 inches 29 cm
Front tread
42.1 inches 106 cm
Rear tread
38.6/44.9 inches 98/114 cm

Photos

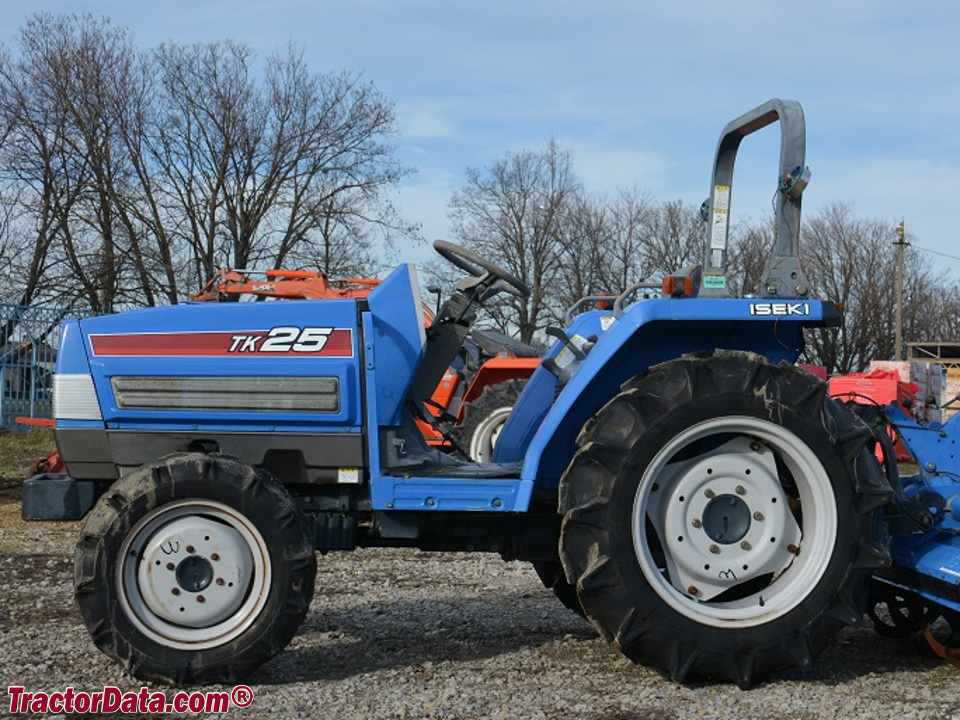

Iseki TK25 compact utility tractor.

Iseki TK25 compact utility tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TK25 based on its 24.7 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TK25.

Estimated Continuous Field Runtime: 6.2 hrs

Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TK25 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TK25.

Converted Equivalents:

Horsepower (HP)24.7 hp
Kilowatts (kW)18.4 kW
Metric Horsepower (PS / CV)25 PS
