Iseki TL3700

The Iseki TL3700 is a tractor produced by Iseki. It is equipped with a 110.9 ci 1.8 L engine. The rated power output is 36 hp 26.8 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2976 to 3428 pounds.

Overview

	1980 - 1985 TL SeriesUtility tractor
1980 - 1985
TL Series
Utility tractor

Production
Manufacturer	Iseki
Utility tractor

Iseki TL3700 Engine
Isuzu 1.8L 4-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Iseki TL3700 Transmission
18-speed
Transmission details ...

Iseki TL3700 Power
Engine	36 hp 26.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Four-post ROPS with canopy. Open station available.

Tractor hitch
Rear Type	JIS1
Control	position and draft control

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	2600@590
	2600@722
	2600@945
	2600@1540

Dimensions & Tires
Wheelbase	70.9 inches 180 cm
Weight	2976 to 3428 pounds
Front tire	6.00-16
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
TL published in 1984, by Iseki
TL3700 - TL4100 - TL4500

Engine

Engine Detail — 110.9 ci / 1.8 L Diesel

Manufacturer	Isuzu 4FB1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	110.9 ci 1.8 L
Bore/Stroke	3.31x3.23 inches 84 x 82 mm
Power	36 hp 26.8 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — 18 forward and 6 reverse

Gears

18 forward and 6 reverse

Dimensions

Iseki TL3700 Tires
Standard tires (ag)	Front: 6.00-16. Rear: 13.6-26

Dimensions
Wheelbase	70.9 inches 180 cm
Length	126.4 inches 321 cm
Width	60.2 inches 152 cm
Height (ROPS)	84.1 inches 213 cm
Height (exhaust)	78.7 inches 199 cm
Ground clearance	14.2 inches 36 cm
2WD Front tread	45.3 to 61 inches 115 to 154 cm
4WD Front tread	47.6 inches 120 cm
Rear tread	44.9 to 59.1 inches 114 to 150 cm

Iseki TL3700 Weight
2WD Open	2976 lbs 1349 kg
2WD ROPS	3197 lbs 1450 kg
4WD Open	3207 lbs 1454 kg
4WD ROPS	3428 lbs 1554 kg

Photos

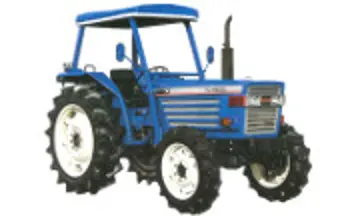

Iseki TL3700 tractor photo
