Iseki TL4200

The Iseki TL4200 is a tractor produced by Iseki. It is equipped with a 90.7 ci 1.5 L engine. The listed engine power is Diesel (listed): 41.4 hp / 30.9 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2976 to 3241 pounds.

Engine Power
Diesel (listed): 41.4 hp / 30.9 kW
Fuel & Capacities
10.6 gal 40.1 L
Transmission
18 forward and 6 reverse
Operating Weight
2976 to 3241 pounds

Overview

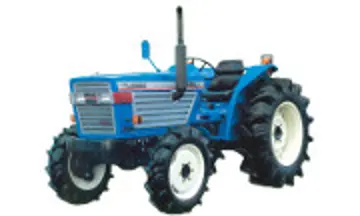

Iseki TL4200 tractor photo
1980 - 1985 TL SeriesCompact Utility tractor TL Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TL4200 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank
10.6 gal 40.1 L
Engine details ...
Iseki TL4200 Transmission
18-speed
Transmission details ...
Iseki TL4200 Power
Engine
41.4 hp 30.9 kW
Mechanical
Two- or four-wheel drive
Open operator station. Four-post ROPS available.
Tractor hitch
Rear Type
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
593@2600
722@2600
945@2600
1540@2600
Dimensions & Tires
Wheelbase
70.9 inches 180 cm
Weight
2976 to 3241 pounds
Front tire
6.00-16
2WD Rear tire
13.6-26
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TL4200 references literature
TL published in 1984, by Iseki
TL2900 - TL3200 - TL4200

Engine

Engine Detail — 90.7 ci / 1.5 L Diesel

Manufacturer
Isuzu 4FA1
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
90.7 ci 1.5 L
Power
41.4 hp 30.9 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 18 forward and 6 reverse

Gears
18 forward and 6 reverse

Dimensions

Iseki TL4200 Tires
2WD Standard tires (ag)
Front: 6.00-16. Rear: 13.6-26
4WD Standard tires (ag)
Front: 8-18. Rear: 13.6-26
Dimensions
Wheelbase
70.9 inches 180 cm
Length
126.2 inches 320 cm
Width
60 inches 152 cm
Height (exhaust)
76 inches 193 cm
2WD Weight
2976 lbs 1349 kg
4WD Weight
3241 lbs 1470 kg
Ground clearance
14.2 inches 36 cm
2WD Front tread
45.3 to 61 inches 115 to 154 cm
4WD Front tread
47.6 inches 120 cm
Rear tread
44.9 to 59.1 inches 114 to 150 cm

Photos

Iseki TL4200 tractor photo

Iseki TL4200 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TL4200 based on its 41.4 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TL4200.

Estimated Continuous Field Runtime: 4.9 hrs

Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).

Estimated 75% Load Fuel Burn~2.2 gal/hr (8.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TL4200 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL4200.

Converted Equivalents:

Horsepower (HP)41.4 hp
Kilowatts (kW)30.9 kW
Metric Horsepower (PS / CV)42 PS

Direct Competitor Comparison

Compare Iseki TL4200 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki

Iseki TL4200

Engine Power:Diesel (listed): 41.4 hp / 30.9 kW
★ Baseline Reference
DeereMarket Competitor

Deere 2038R

Engine Power:37.3
Production Years:2017 - 2026
KubotaMarket Competitor

Kubota KL380

Engine Power:37.4
Production Years:2006 - 2007
Massey FergusonMarket Competitor

Massey Ferguson 133

Engine Power:37.5
Production Years:1969 - 1974
International HarvesterMarket Competitor

International Harvester 276

Engine Power:37.5
Production Years:1966 - 1971
