Iseki TA345
The Iseki TA345 is a tractor produced by Iseki. It is equipped with a 113.6 ci 1.9 L engine. The listed engine power is Diesel (listed): 33.5 hp / 25.0 kW. Transmission: 16 forward and reverse. Operating weight: 3750 lbs 1701 kg.
Engine Power
Diesel (listed): 33.5 hp / 25.0 kW
Fuel & Capacities
12.7 gal
48.1 L
Transmission
16 forward and reverse
Operating Weight
3750 lbs
1701 kg
Overview
![]() | 1987 - 1990
Landleader TA5 SeriesCompact Utility tractor
Landleader TA5 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TA345 Engine | |
|---|---|
Iseki 1.9L 4-cyl diesel | |
Fuel tank | 12.7 gal
48.1 L |
Engine details ... | |
Iseki TA345 Transmission | |
|---|---|
16-speed shuttle | |
Transmission details ... |
Iseki TA345 Power | |
|---|---|
Engine | 33.5 hp
25.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Four-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 587@2600 |
705@2600 | |
854@2600 | |
132@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 74.8 inches
189 cm |
Weight | 3750 lbs
1701 kg |
Front tire | 8-18 |
Rear tire | 13.6-26 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Operator's Manual Landleader (1564-912-006-1B) published in 1990 | |
Landleader TA345/TA375 TA415/TA455 published in 1990, by Iseki |
Engine
Engine Detail — 113.6 ci / 1.9 L Diesel
Manufacturer | Iseki 4JE1 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.6 ci
1.9 L |
Bore/Stroke | 3.66x2.62 inches
93 x 67 mm |
Power | 33.5 hp
25.0 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission

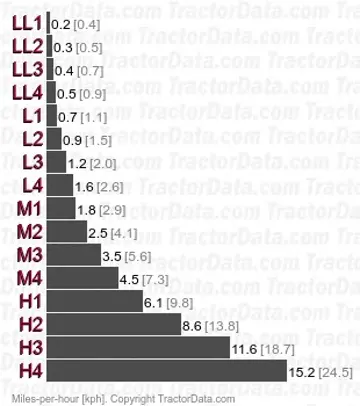

Transmission — 16 forward and reverse shuttle
Type | shuttle |
Gears | 16 forward and reverse |
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant). | |
![]() | |
Dimensions
Iseki TA345 Tires | |
|---|---|
Standard tires (ag) | Front: 8-18. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 74.8 inches
189 cm |
Length | 129.9 inches
329 cm |
Width | 60 inches
152 cm |
Height | 86.2 inches
218 cm |
Weight | 3750 lbs
1701 kg |
Ground clearance | 14.6 inches
37 cm |
Front tread | 47.6 inches
120 cm |
Rear tread | 44.9 to 59.1 inches
114 to 150 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TA345 based on its 33.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TA345.
Estimated Continuous Field Runtime: 7.3 hrs
Approximately 7.3 hours of continuous field operation at ~75% rated power on a full tank (12.7 gal / 48.1 L).
Estimated 75% Load Fuel Burn~1.7 gal/hr (6.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TA345 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA345.
Converted Equivalents:
Horsepower (HP)33.5 hp
Kilowatts (kW)25 kW
Metric Horsepower (PS / CV)34 PS
Direct Competitor Comparison
Compare Iseki TA345 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TA345
Engine Power:Diesel (listed): 33.5 hp / 25.0 kW
★ Baseline Reference
