Iseki TU205 Landhope

The Iseki TU205 Landhope is a tractor produced by Iseki. It is equipped with a 71.4 ci 1.2 L engine. The rated power output is 19.7 hp 14.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1896 to 2094 pounds.

Overview

	1986 - 1990 Landhope TU SeriesCompact Utility tractor
1986 - 1990
Landhope TU Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU205F	4WD

Iseki TU205 Engine
Iseki 1.2L 3-cyl diesel
Fuel tank	6.6 gal 25.0 L
Engine details ...

Iseki TU205 Transmission
12-speed
Transmission details ...

Iseki TU205 Power
Engine	19.7 hp 14.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Open operator station.

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	553@2500
	847@2500
	1309@2500

Dimensions & Tires
Wheelbase	57.5 inches 146 cm
Weight	1896 to 2094 pounds
Front tire	4.00-15
2WD Rear tire	9.5-22
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 71.4 ci / 1.2 L Diesel

Manufacturer	Iseki E3AF1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	71.4 ci 1.2 L
Bore/Stroke	2.992x3.386 inches 76 x 86 mm
Power	19.7 hp 14.7 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

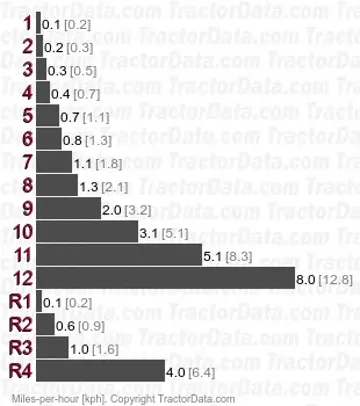

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse

Dimensions

Iseki TU205 Tires
2WD Standard tires (ag)	Front: 4.00-15. Rear: 9.5-22
4WD Standard tires (ag)	Front: 6-14. Rear: 9.5-22

Dimensions
Wheelbase	57.5 inches 146 cm
Length	114.2 inches 290 cm
Width	47.6 inches 120 cm
Height	55.3 inches 140 cm
2WD Weight	1896 lbs 860 kg
4WD Weight	2094 lbs 949 kg
2WD Ground clearance	10.6 inches 26 cm
4WD Ground clearance	11 inches 27 cm
2WD Front tread	37/38.6 inches 93/98 cm
4WD Front tread	40.2 inches 102 cm
Rear tread	37/43.3 inches 93/109 cm

Photos

Iseki TU205 Landhope

Iseki TU205 Landhope

Iseki TU205 Landhope

Iseki TU205 Landhope

Iseki TU205 Landhope

Iseki TU205 operator station and controls.
