Iseki TU240

The Iseki TU240 is a tractor produced by Iseki. It is equipped with a 79.1 ci 1.3 L engine. The rated power output is 23.7 hp 17.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1984 to 2205 pounds.

Overview

	1984 - 1986 Landhope TU SeriesCompact Utility tractor
1984 - 1986
Landhope TU Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU240F	4WD

Iseki TU240 Engine
Iseki 1.3L 3-cyl diesel
Fuel tank	6.6 gal 25.0 L
Engine details ...

Iseki TU240 Transmission
12-speed
Transmission details ...

Iseki TU240 Power
Engine	23.7 hp 17.7 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	526@2500
	805@2500
	1244@2500

Dimensions & Tires
Wheelbase	60.2 inches 152 cm
Weight	1984 to 2205 pounds
Front tire	500-15
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 79.1 ci / 1.3 L Diesel

Manufacturer	Iseki E3AE1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	79.1 ci 1.3 L
Bore/Stroke	3.15x3.386 inches 80 x 86 mm
Power	23.7 hp 17.7 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

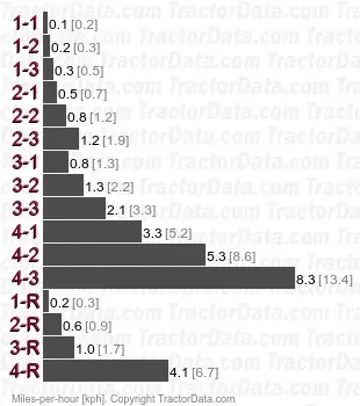

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Three gears, plus reverse, in four ranges.

Dimensions

Iseki TU240 Tires
2WD Standard tires (ag)	Front: 500-15. Rear: 11.2-24
4WD Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	60.2 inches 152 cm
Length	121.1 inches 307 cm
Width	50.6 inches 128 cm
2WD Height	75.8 inches 192 cm
4WD Height	76 inches 193 cm
2WD Weight	1984 lbs 899 kg
4WD Weight	2205 lbs 1000 kg
2WD Ground clearance	12.4 inches 31 cm
4WD Ground clearance	12.6 inches 32 cm
2WD Front tread	37 to 38.6 inches 93 to 98 cm
4WD Front tread	41.1 inches 104 cm
Rear tread	38.6/41.5/43.1/46.5/51.2 inches 98/105/109/118/130 cm

Photos

Iseki TU240

Iseki TU240

Iseki TU240

Iseki TU240

Iseki TU240
