Iseki TL1900

The Iseki TL1900 is a tractor produced by Iseki. It is equipped with a 71.4 ci 1.2 L engine. The listed engine power is Diesel (listed): 19 hp / 14.2 kW. Transmission: 18 forward and 6 reverse. Operating weight: 1995 to 2183 pounds.

Engine Power
Diesel (listed): 19 hp / 14.2 kW
Fuel & Capacities
7.1 gal 26.9 L
Transmission
18 forward and 6 reverse
Operating Weight
1995 to 2183 pounds

Overview

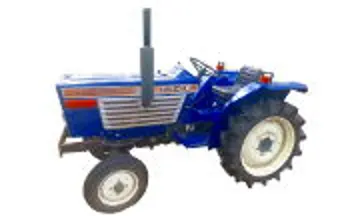

Iseki TL1900 tractor photo
1980 - 1985 TL SeriesCompact Utility tractor TL Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Variants
TL1900F
4WD
Iseki TL1900 Engine
Isuzu 1.2L 3-cyl diesel
Fuel tank
7.1 gal 26.9 L
Engine details ...
Iseki TL1900 Power
Engine
19 hp 14.2 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Tractor hitch
Rear Type
JIS0
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
553@2600
731@2600
906@2600
1280@2600
Dimensions & Tires
Wheelbase
58.3 inches 148 cm
Weight
1995 to 2183 pounds
Front tire
4.00-12
2WD Rear tire
8.3-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References

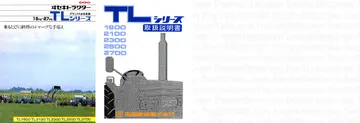

TL1900 references literature
TL published in 1984, by Iseki
TL1900 - TL2700

Engine

Engine Detail — 71.4 ci / 1.2 L Diesel

Manufacturer
Isuzu E3AF1
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
71.4 ci 1.2 L
Bore/Stroke
2.992x3.386 inches 76 x 86 mm
Power
19 hp 14.2 kW
Rated RPM
2600
Starter
electric
Starter volts
12
Coolant capacity
7.4 qts 7.0 L
Oil capacity
5 qts 4.7 L
Oil change
100 h

Transmission

Transmission options
9-speed gear
18-speed creeper

Transmission — 9 forward and 3 reverse gear

Type
gear
Gears
9 forward and 3 reverse
Oil capacity
33.8 qts 32.0 L
Three gears (1-3) plus reverse (R) in three ranges.

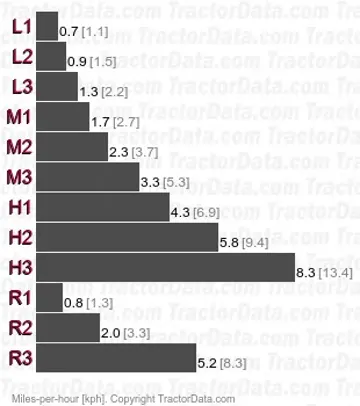

TL1900  gear speeds

Transmission — 18 forward and 6 reverse creeper

Type
creeper
Gears
18 forward and 6 reverse
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range.

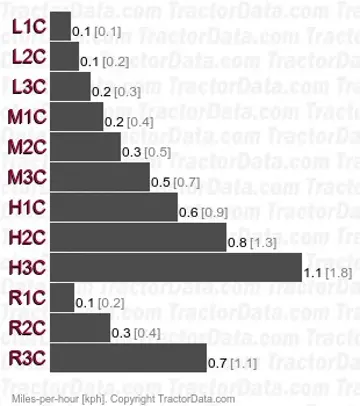

TL1900  creeper speeds

Dimensions

Iseki TL1900 Tires
2WD Standard tires (ag)
Front: 4.00-12. Rear: 8.3-24
4WD Standard tires (ag)
Front: 6-14. Rear: 8.3-24
Dimensions
Wheelbase
58.3 inches 148 cm
Length
106.3 inches 270 cm
2WD Width
46.7 inches 118 cm
4WD Width
48.8 inches 123 cm
Height
76 inches 193 cm
2WD Weight
1995 lbs 904 kg
4WD Weight
2183 lbs 990 kg
Ground clearance
11.4 inches 28 cm
2WD Front tread
36.2/40.6 inches 91/103 cm
4WD Front tread
39.4 inches 100 cm
Rear tread
37/42.9 inches 93/108 cm

Photos

Two-wheel drive Iseki TL1900 tractor.

Two-wheel drive Iseki TL1900 tractor.

Two-wheel drive Iseki TL1900 tractor.

Two-wheel drive Iseki TL1900 tractor.

Two-wheel drive Iseki TL1900 tractor.

Two-wheel drive Iseki TL1900 tractor.

Iseki TL1900 hitch and PTO.

Iseki TL1900 hitch and PTO.

Iseki TL1900 controls and operator station.

Iseki TL1900 controls and operator station.

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TL1900 based on its 19 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TL1900.

Estimated Continuous Field Runtime: 7.2 hrs

Approximately 7.2 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TL1900 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL1900.

Converted Equivalents:

Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS
