Iseki SG13

The Iseki SG13 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 553 cc 33.8 ci engine. The listed engine power is Diesel (listed): 13 hp / 9.7 kW. Transmission: 5 forward and 1 reverse. Operating weight: 750 lbs 340 kg.

Overview

	1996 - ???? Garden tractor
1996 - ????
Garden tractor

1996 - ????
Garden tractor

Production
Manufacturer	Iseki
Garden tractor

Iseki SG13 Engine
13HP Iseki 553cc 2-cyl diesel
Fuel tank	2.9 gal 11.0 L
Engine details ...

Iseki SG13 Transmission
5-speed
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical dry shoe brakes

Dimensions & Tires
Weight	750 lbs 340 kg
Front tire	16x6.50-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	8.5
Battery volts	12
Battery AH	35

Engine

	1996 - ???? Garden tractor
1996 - ????
Garden tractor

1996 - ????
Garden tractor

Engine Detail — 553 cc / 33.8 ci Diesel

Manufacturer	Iseki E255
Fuel Type	Diesel
Configuration	2-cylinder
Displacement	553 cc 33.8 ci
Bore/Stroke	2.76x2.835 inches 70 x 72 mm
Power	13 hp 9.7 kW
Starter type	electric
Oil capacity	2.3 qts 2.2 L
Intake valve clearance	0.010 inches 0.254 mm
Exhaust valve clearance	0.010 inches 0.254 mm

Transmission

	1996 - ???? Garden tractor
1996 - ????
Garden tractor

1996 - ????
Garden tractor

Transmission — 5 forward and 1 reverse

Gears	5 forward and 1 reverse
Oil capacity	6.3 qts 6.0 L

Dimensions

	1996 - ???? Garden tractor
1996 - ????
Garden tractor

1996 - ????
Garden tractor

Iseki SG13 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.5-12

Dimensions
Length	66.5 inches 168 cm
Width	40.2 inches 102 cm
Height (steering wheel)	44.9 inches 114 cm
Shipping weight	750 lbs 340 kg

Photos

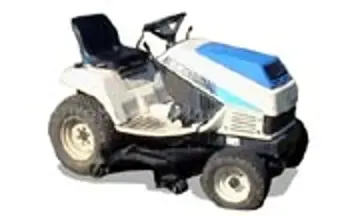

Iseki SG13 tractor photo
