Iseki SXG19

The Iseki SXG19 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 1006 cc 61.4 ci engine. The listed engine power is Diesel (listed): 19 hp / 14.2 kW. Transmission: infinite forward and reverse. Operating weight: 232 lbs 105 kg.

Engine Power
Diesel (listed): 19 hp / 14.2 kW
Fuel & Capacities
4.9 gal 18.5 L
Transmission
infinite forward and reverse
Operating Weight
232 lbs 105 kg

Overview

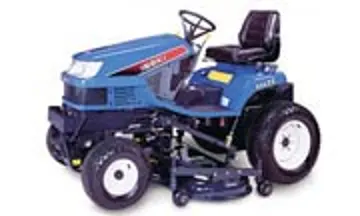

Iseki SXG19 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor
Production
Manufacturer
Iseki
Garden tractor
Iseki SXG19 Engine
19HP Iseki 1006cc 3-cyl diesel
Fuel tank
4.9 gal 18.5 L
Engine details ...
Iseki SXG19 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
power
Expanding shoe brakes
Open operator station.
Power Take-off (PTO)
Mid PTO Type
1750
Dimensions & Tires
Wheelbase
53.7 inches 136 cm
Weight
1135 lbs 514 kg
Front tire
16x6.5-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
SXG19 references literature
Iseki Product Guide published in 2005

Engine

Iseki SXG19 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor

Engine Detail — 1006 cc / 61.4 ci Diesel

Manufacturer
Iseki E3100
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
1006 cc 61.4 ci
Power
19 hp 14.2 kW
Fuel system
indirect injection
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Iseki SXG19 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
SXG19  hydrostatic speeds

Dimensions

Iseki SXG19 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor
Iseki SXG19 Tires
Lawn/turf front
16x6.5-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
53.7 inches 136 cm
Length
83.1 inches 211 cm
Width
43.3 inches 109 cm
Height
50.8 inches 129 cm
Weight
1135 lbs 514 kg
Ground clearance
5.9 inches 14 cm

Attachments

Iseki SXG19 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor
Attachment overview
The Iseki SXG19 was available with the model 550 hydraulic-dump collection system with a 550 liter capacity. The 550 was available in both low and high dump versions.
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
48" Mower deck
Type
mid-mount Iseki
2-blade
Cutting width
48 inches 121 cm
Weight
232 lbs 105 kg
Cut height
1.2 to 4.7 inch 3 to 11 cm

Photos

Iseki SXG19 tractor photo

Iseki SXG19 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki Lawn Tractors Iseki SXG19 based on its 19 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki Lawn Tractors Iseki SXG19.

Estimated Continuous Field Runtime: 5 hrs

Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (4.9 gal / 18.5 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki Lawn Tractors Iseki SXG19 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki Lawn Tractors Iseki SXG19.

Converted Equivalents:

Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS
