Iseki SXG22

The Iseki SXG22 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 1122 cc 68.5 ci engine. The listed engine power is Diesel (listed): 22 hp / 16.4 kW. Transmission: infinite forward and reverse. Operating weight: 1124 lbs 509 kg.

Engine Power
Diesel (listed): 22 hp / 16.4 kW
Fuel & Capacities
4.9 gal 18.5 L
Transmission
infinite forward and reverse
Operating Weight
1124 lbs 509 kg

Overview

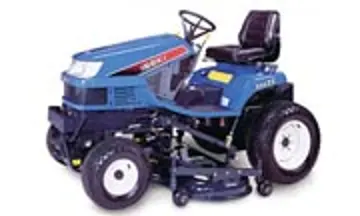

Iseki SXG22 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor
Production
Manufacturer
Iseki
Garden tractor
Iseki SXG22 Engine
22HP Iseki 1122cc 3-cyl diesel
Fuel tank
4.9 gal 18.5 L
Engine details ...
Iseki SXG22 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
power
Expanding shoe brakes
Open operator station.
Power Take-off (PTO)
Mid PTO Type
1750
Dimensions & Tires
Wheelbase
57.1 inches 145 cm
Weight
1124 lbs 509 kg
Front tire
210/60D-8
Rear tire
250/60D-14
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
SXG22 references literature
Iseki Product Guide published in 2005

Engine

Iseki SXG22 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor

Engine Detail — 1122 cc / 68.5 ci Diesel

Manufacturer
Iseki E3112
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
1122 cc 68.5 ci
Bore/Stroke
3.08x3.07 inches 78 x 78 mm
Power
22 hp 16.4 kW
Fuel system
direct injection
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Iseki SXG22 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
SXG22  hydrostatic speeds

Dimensions

Iseki SXG22 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor
Iseki SXG22 Tires
Lawn/turf front
210/60D-8
Lawn/turf rear
250/60D-14
Dimensions
Wheelbase
57.1 inches 145 cm
Length
83.1 inches 211 cm
Width
44.5 inches 113 cm
Height
49.8 inches 126 cm
Weight
1124 lbs 509 kg
Ground clearance
5.9 inches 14 cm

Attachments

Iseki SXG22 tractor photo
2007 - ???? Garden tractor
2007 - ????
Garden tractor
2007 - ????
Garden tractor
Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
The Iseki SXG2 was available with the model 550 hydraulic-dump collection system with a 550 liter capacity.
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Iseki SXG22 tractor photo

Iseki SXG22 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki Lawn Tractors Iseki SXG22 based on its 22 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki Lawn Tractors Iseki SXG22.

Estimated Continuous Field Runtime: 4.3 hrs

Approximately 4.3 hours of continuous field operation at ~75% rated power on a full tank (4.9 gal / 18.5 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki Lawn Tractors Iseki SXG22 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki Lawn Tractors Iseki SXG22.

Converted Equivalents:

Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS

Direct Competitor Comparison

Compare Iseki SXG22 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki Lawn Tractors

Iseki SXG22

Engine Power:Diesel (listed): 22 hp / 16.4 kW
★ Baseline Reference
FordMarket Competitor

Ford 1500

Engine Power:19.8
Production Years:1979 - 1982
New HollandMarket Competitor

New Holland 1320

Engine Power:20
Production Years:1996 - 1998
Massey FergusonMarket Competitor

Massey Ferguson 205

Engine Power:20
Production Years:1978 - 1984
CaseIHMarket Competitor

CaseIH 244

Engine Power:20
Production Years:1984 - 1986
