Iseki SG153

The Iseki SG153 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 619 cc 37.8 ci engine. The listed engine power is Diesel (listed): 15 hp / 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 772 lbs 350 kg.

Overview

	2006 - ???? Garden tractor
2006 - ????
Garden tractor

2006 - ????
Garden tractor

Production
Manufacturer	Iseki
Garden tractor

Iseki SG153 Engine
15HP Iseki 619cc 2-cyl diesel
Fuel tank	2.9 gal 11.0 L
Engine details ...

Iseki SG153 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical dry shoe brakes

Hydraulics
Pressure	440 psi 30.3 bar
Total flow	2.6 gpm 9.8 lpm

Dimensions & Tires
Weight	772 lbs 350 kg
Front tire	16x6.50-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	8.5
Battery volts	12
Battery AH	35

Engine

	2006 - ???? Garden tractor
2006 - ????
Garden tractor

2006 - ????
Garden tractor

Engine Detail — 619 cc / 37.8 ci Diesel

Manufacturer	Iseki E262
Fuel Type	Diesel
Configuration	2-cylinder
Displacement	619 cc 37.8 ci
Bore/Stroke	2.91x2.835 inches 74 x 72 mm
Power	15 hp 11.2 kW
Starter type	electric
Oil capacity	2.6 qts 2.5 L
Intake valve clearance	0.010 inches 0.254 mm
Exhaust valve clearance	0.010 inches 0.254 mm

Transmission

	2006 - ???? Garden tractor
2006 - ????
Garden tractor

2006 - ????
Garden tractor

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	6.3 qts 6.0 L

Dimensions

	2006 - ???? Garden tractor
2006 - ????
Garden tractor

2006 - ????
Garden tractor

Iseki SG153 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.5-12

Dimensions
Length	66.5 inches 168 cm
Width	40.2 inches 102 cm
Height (steering wheel)	44.9 inches 114 cm
Shipping weight	772 lbs 350 kg

Photos

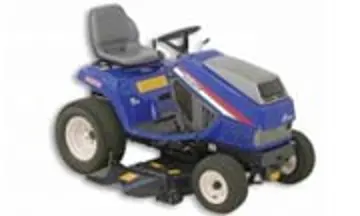

Iseki SG153 tractor photo
