Iseki TMG18

The Iseki TMG18 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 927 cc 56.6 ci engine. The listed engine power is Diesel (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 1,157 lbs 524 kg.

Overview

	2001 - ???? Garden tractor
2001 - ????
Garden tractor

2001 - ????
Garden tractor

Production
Manufacturer	Iseki
Garden tractor

Iseki TMG18 Engine
18HP Iseki 927cc 3-cyl diesel
Fuel tank	3.6 gal 13.6 L
Engine details ...

Iseki TMG18 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	hydrostatic power

Hydraulics
Pressure	2000 psi 137.9 bar
Total flow	5.3 gpm 20.1 lpm
Steering flow	1.5 gpm 5.7 lpm

Tractor hitch
Rear Type	0
Rear lift (at ends)	441 lbs 200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Mid PTO Type	2000

Dimensions & Tires
Weight	1,157 lbs 524 kg
Front tire	18x7.00-8
Rear tire	29x12.00-15
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	40
Battery volts	12
Battery AH	36

Engine

	2001 - ???? Garden tractor
2001 - ????
Garden tractor

2001 - ????
Garden tractor

Engine Detail — 927 cc / 56.6 ci Diesel

Manufacturer	Iseki E393
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	927 cc 56.6 ci
Bore/Stroke	2.91x2.835 inches 74 x 72 mm
Power	18 hp 13.4 kW
Firing order	1-2-3
Starter type	electric
Oil capacity	2.9 qts 2.7 L

Transmission

	2001 - ???? Garden tractor
2001 - ????
Garden tractor

2001 - ????
Garden tractor

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	15.9 qts 15.0 L

Dimensions

	2001 - ???? Garden tractor
2001 - ????
Garden tractor

2001 - ????
Garden tractor

Iseki TMG18 Tires
Lawn/turf front	18x7.00-8
Lawn/turf rear	29x12.00-15

Dimensions
Length	85.8 inches 217 cm
Width	46.9 inches 119 cm
Height (steering wheel)	50 inches 127 cm
Weight	1,157 lbs 524 kg

Photos

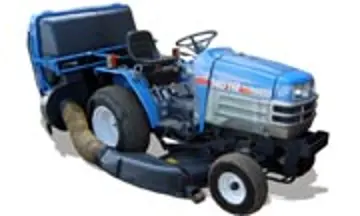

Iseki TMG18 tractor photo
