Iseki SGR19

The Iseki SGR19 is a tractor produced by Iseki Lawn Tractors. It is equipped with a 927 cc 56.6 ci engine. The listed engine power is Diesel (listed): 19 hp / 14.2 kW. Transmission: infinite forward and reverse. Operating weight: 948 lbs 430 kg.

Engine Power
Diesel (listed): 19 hp / 14.2 kW
Fuel & Capacities
4.9 gal 18.5 L
Transmission
infinite forward and reverse
Operating Weight
948 lbs 430 kg

Overview

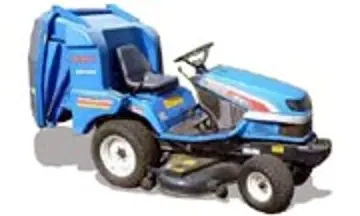

Iseki SGR19 tractor photo
2001 - ???? Lawn tractor
2001 - ????
Lawn tractor
2001 - ????
Lawn tractor
Production
Manufacturer
Iseki
Lawn tractor
Iseki SGR19 Engine
19HP Iseki 927cc 3-cyl diesel
Fuel tank
4.9 gal 18.5 L
Engine details ...
Iseki SGR19 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
hydrostatic power
Mechanical wet disc brakes
Hydraulics
Pressure
780 psi 53.8 bar
Total flow
3.2 gpm 12.1 lpm
Dimensions & Tires
Weight
948 lbs 430 kg
Front tire
210/60D-8
Rear tire
250/60D-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
40
Battery volts
12
Battery AH
42

Engine

Iseki SGR19 tractor photo
2001 - ???? Lawn tractor
2001 - ????
Lawn tractor
2001 - ????
Lawn tractor

Engine Detail — 927 cc / 56.6 ci Diesel

Manufacturer
Iseki E393
Fuel Type
Diesel
Configuration
3-cylinder
Displacement
927 cc 56.6 ci
Power
19 hp 14.2 kW
Starter type
electric
Oil capacity
2.6 qts 2.5 L
Intake valve clearance
0.010 inches 0.254 mm
Exhaust valve clearance
0.010 inches 0.254 mm

Transmission

Iseki SGR19 tractor photo
2001 - ???? Lawn tractor
2001 - ????
Lawn tractor
2001 - ????
Lawn tractor

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
Oil capacity
7.1 qts 6.7 L

Dimensions

Iseki SGR19 tractor photo
2001 - ???? Lawn tractor
2001 - ????
Lawn tractor
2001 - ????
Lawn tractor
Iseki SGR19 Tires
Lawn/turf front
210/60D-8
Lawn/turf rear
250/60D-14
Dimensions
Length
76.2 inches 193 cm
Width
43.3 inches 109 cm
Height (steering wheel)
49.8 inches 126 cm
Shipping weight
948 lbs 430 kg

Photos

Iseki SGR19 tractor photo

Iseki SGR19 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki Lawn Tractors Iseki SGR19 based on its 19 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki Lawn Tractors Iseki SGR19.

Estimated Continuous Field Runtime: 5 hrs

Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (4.9 gal / 18.5 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki Lawn Tractors Iseki SGR19 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki Lawn Tractors Iseki SGR19.

Converted Equivalents:

Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS

Direct Competitor Comparison

Compare Iseki SGR19 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki Lawn Tractors

Iseki SGR19

Engine Power:Diesel (listed): 19 hp / 14.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota A-175

Engine Power:17.3
Production Years:1992 - 1996
International HarvesterMarket Competitor

International Harvester 8-16

Engine Power:17.8
Production Years:1917 - 1922
IsekiMarket Competitor

Iseki TF173

Engine Power:17.3
PasqualiMarket Competitor

Pasquali 409

Engine Power:17.4
