J.I. Case 1090

The J.I. Case 1090 is a tractor produced by J I Case. It is equipped with a 451 ci 7.4 L engine. Transmission: Range Power Shift. Operating weight: 10,400 lbs 4717 kg.

Fuel & Capacities
50 gal 189.2 L
Transmission
Range Power Shift
Operating Weight
10,400 lbs 4717 kg

Overview

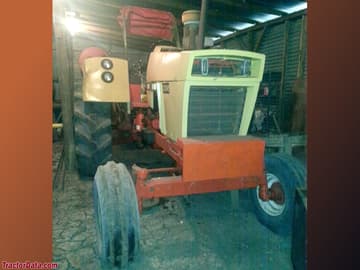

J.I. Case 1090 tractor photo
1970 Row-Crop tractor
Production
Manufacturer
J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Total built
450
Original price was $12,000 in 1970
J.I. Case 1090 Engine
J.I. Case 7.4L 6-cyl diesel
Fuel tank
50 gal 189.2 L
Engine details ...
J.I. Case 1090 Power
PTO (claimed)
110 hp 82.0 kW
Mechanical
Two-wheel drive
Power steering
Open operator station. Cab optional.
Hydraulics
Type
open center
Valves
2
Pump flow
16 gpm 60.6 lpm
Tractor hitch
Rear Type
II
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
Weight
10,400 lbs 4717 kg
Front tire
10.00-16
Rear tire
18.4-38
Full dimensions and tires ...

Engine

Engine Detail — 451 ci / 7.4 L Diesel

Manufacturer
J.I. Case
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
451 ci 7.4 L
Bore/Stroke
4.375x5.00 inches 111 x 127 mm
Compression
16.5:1
Rated RPM
2100
Starter volts
12
Coolant capacity
40 qts 37.9 L

Transmission

Transmission options
8-speed unsynchronized
12-speed partial powershift

Transmission — 8 forward and 2 reverse unsynchronized

Type
unsynchronized
Gears
8 forward and 2 reverse

Transmission — Range Power Shift

Transmission
Range Power Shift
Type
partial powershift
Gears
12 forward and 4 reverse
Four gears each with reverse and a three-speed forward powershift.

Dimensions

J.I. Case 1090 Tires
Ag front
10.00-16
Ag rear
18.4-38
Dimensions
Weight
10,400 lbs 4717 kg

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 1090.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
