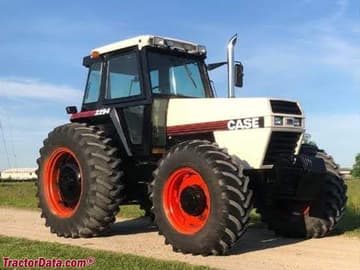

J.I. Case 2294

The J.I. Case 2294 is a tractor produced by J I Case. It is equipped with a 504 ci 8.3 L engine. The rated power output is 154 hp 114.8 kW. Transmission: 12 forward and 3 reverse. Operating weight: 11070 to 14390 pounds.

Overview

	1984 94 SeriesRow-Crop tractor
1984
94 Series
Row-Crop tractor

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA

J.I. Case 2294 Engine
Case 8.3L 6-cyl diesel
Engine details ...

J.I. Case 2294 Transmission
12-speed three-speed power shift
Transmission details ...

J.I. Case 2294 Power
Engine	154 hp 114.8 kW
Drawbar (claimed)	116 hp 86.5 kW
PTO (claimed)	130 hp 96.9 kW
Drawbar (tested)	115.35 hp 86.0 kW
PTO (tested)	131.97 hp 98.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Four-post ROPS. Silent Guardian cab optional with air-conditioning.

Capacity
Fuel	65 gal 246.0 L
	25 gal*Optional auxiliary tank 94.6 L
Hydraulic system	25 gal 94.6 L

Hydraulics
Type	closed center
Capacity	25 gal 94.6 L
Pressure	2250 psi 155.1 bar
Valves	2 to 4 *3 only with 4WD
Pump flow	23 gpm 87.1 lpm
Steering flow	8 gpm 30.3 lpm
Steering press.	2000 psi 137.9 bar

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	6600 lbs 2993 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104 inches 264 cm
	110 inches*Optional long wheelbase. 279 cm
Weight	11070 to 14390 pounds
Front tire	11.00x16
Rear tire	18.4-38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	72
	105 OptOptional
Battery volts	12

References
2094 - 2294 published in 1983, by J.I. Case
94 Series published in 1983, by J.I. Case
2094/2294/2394/2594 Tractors published in 1983, by J.I. Case
Product Information - Case 94 Series Tractors published in 1983, by J.I. Case
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Case
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	154 hp 114.8 kW
Compression	15.8:1
Rated RPM	2100
Starter volts	12
Oil capacity	24 qts 22.7 L
Coolant capacity	38 qts 36.0 L

Transmission

Transmission — 12 forward and 3 reverse three-speed power shift

Type	three-speed power shift
Gears	12 forward and 3 reverse
Oil capacity	100 qts 94.6 L

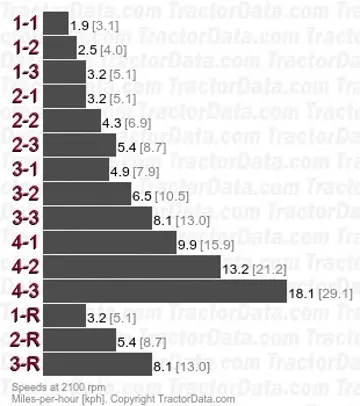

Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
With 18.4x38 rear tires.

Dimensions

J.I. Case 2294 Tires
Standard tires (ag)	Front: 11.00x16. Rear: 18.4-38 (2WD)
	Front: 14.9-28. Rear: 18.4-38 (4WD)
Ag rear	23.1x34
	16.9x38
	20.8x38

Dimensions
Wheelbase	104 inches 264 cm
	110 inches*Optional long wheelbase. 279 cm
Bar rear axle	3.5 by 96 inches 88 by 2438 mm
Bar rear axle	3.5 by 120 inches 88 by 3048 mm
Rear tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 112 inches 152 to 284 cm

J.I. Case 2294 Weight
Shipping	11070 lbs 5021 kg
Operating	14390 lbs 6527 kg
Max capacity	16600 lbs 7529 kg

Tests

Nebraska Tractor Test 1526
Diesel 12 speed 2WD June 1 - 12, 1984 Link: Nebraska Tractor Test 1526 file
PTO performance
Power at rated engine speed	131.97 hp 98.4 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power	115.35 hp 86.0 kW
Fuel use	8.8 gal/hour 33.3 l/hour
Gear 3-2 used for power test.
Max pull	13,017 lbs 5904 kg
Gear 2-1 used for pull test.
