J.I. Case 2094

The J.I. Case 2094 is a tractor produced by J I Case. It is equipped with a 504 ci 8.3 L engine. The rated power output is 127 hp 94.7 kW. Transmission: 12 forward and 3 reverse. Operating weight: 10950 to 14190 pounds.

Overview

	1984 94 SeriesRow-Crop tractor
1984
94 Series
Row-Crop tractor

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $43,400 in 1984

J.I. Case 2094 Engine
Case 8.3L 6-cyl diesel
Engine details ...

J.I. Case 2094 Transmission
12-speed three-speed power shift
Transmission details ...

J.I. Case 2094 Power
Engine	127 hp 94.7 kW
Drawbar (claimed)	100 hp 74.6 kW
PTO (claimed)	110 hp 82.0 kW
Drawbar (tested)	98.66 hp 73.6 kW
PTO (tested)	111.50 hp 83.1 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Four-post ROPS. Silent Guardian cab optional with air-conditioning.

Capacity
Fuel	65 gal 246.0 L
	25 gal (optional auxiliary tank) 94.6 L
Hydraulic system	25 gal 94.6 L

Hydraulics
Type	closed center
Capacity	25 gal 94.6 L
Pressure	2250 psi 155.1 bar
Valves	2 to 4 *3 only with 4WD
Pump flow	23 gpm 87.1 lpm
Steering flow	8 gpm 30.3 lpm
Steering press.	2000 psi 137.9 bar

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	6,600 lbs 2993 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104 inches 264 cm
	110 inches*Optional long wheelbase. 279 cm
Weight	10950 to 14190 pounds
Front tire	11.00x16
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	72
	105 OptOptional
Battery volts	12

References
2094 - 2294 published in 1983, by J.I. Case
94 Series published in 1983, by J.I. Case
2094/2294/2394/2594 Tractors published in 1983, by J.I. Case
Product Information - Case 94 Series Tractors published in 1983, by J.I. Case
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Case
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	127 hp 94.7 kW
Compression	16:1
Rated RPM	2100
Torque	366.6 lb-ft 497.1 Nm
Torque RPM	1575
Starter volts	12
Oil capacity	19 qts 18.0 L
Coolant capacity	38 qts 36.0 L

Transmission

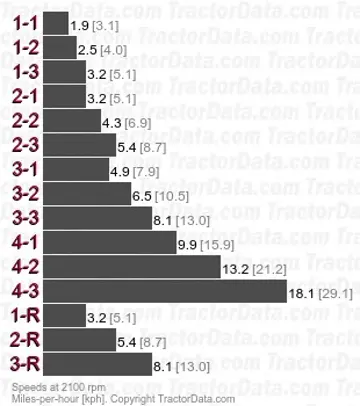

Transmission — 12 forward and 3 reverse three-speed power shift

Type	three-speed power shift
Gears	12 forward and 3 reverse
Oil capacity	100 qts 94.6 L
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
With 18.4x38 rear tires.

Dimensions

J.I. Case 2094 Tires
Ag front	11.00x16
Ag rear	18.4x38
Ag front	14Lx16
Ag rear	23.1x34
	16.9x38
	20.8x38

Dimensions
Wheelbase	104 inches 264 cm
	110 inches*Optional long wheelbase. 279 cm
Width	96 inches 243 cm
	120 inches (optional axle) 304 cm
Bar rear axle	3.5 by 96 inches 88 by 2438 mm
Bar rear axle	3.5 by 120 inches 88 by 3048 mm
Rear tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 112 inches 152 to 284 cm

J.I. Case 2094 Weight
Shipping	10,950 lbs 4966 kg
Operating	14,190 lbs 6436 kg
Max capacity	15,600 lbs (2WD) 7076 kg
	16,600 lbs (4WD) 7529 kg
Max front axle	12,125 lbs 5499 kg
Max rear axle	13,000 lbs 5896 kg

Tests

Nebraska Tractor Test 1525
Diesel 12-speed 2WD May 30 - June 16, 1984 Link: Nebraska Tractor Test 1525 file
PTO performance
Power at rated engine speed	111.50 hp 83.1 kW
Fuel use	7.2 gal/hour 27.3 l/hour
Drawbar performance
Max power	98.66 hp 73.6 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Gear 3-2 used for power test.
Max pull	11,910 lbs 5402 kg
Gear 2-1 used for pull test.
