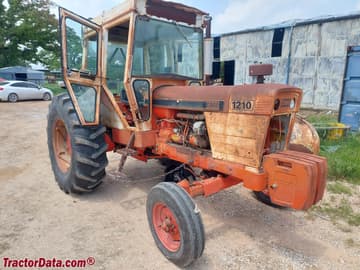

J.I. Case 1210
The J.I. Case 1210 is a tractor produced by J I Case. It is equipped with a 219 ci 3.6 L engine. Transmission: Hydra-Shift. Operating weight: 7,100 lbs 3220 kg.
Fuel & Capacities
22 gal
83.3 L
Transmission
Hydra-Shift
Operating Weight
7,100 lbs
3220 kg
J I Case J.I. Case 1210 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1976 - 1980
Utility tractor |
|---|---|
1976 - 1980 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Meltham Mills, Huddersfield, England | |
The J.I. Case 1210 was the same tractor as the David Brown 1210 (syncho) and David Brown 1212 (power shift). | |
J.I. Case 1210 Engine | |
|---|---|
David Brown 3.6L 4-cyl diesel | |
Engine details ...  |
J.I. Case 1210 Power |
|---|
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. ROPS. |
Capacity | |
|---|---|
Fuel | 22 gal
83.3 L |
Hydraulic system | 13 gal
49.2 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 13 gal
49.2 L |
Valves | 1 |
Pump flow | 8 gpm
30.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independen |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 90 inches
228 cm |
Weight | 7,100 lbs
3220 kg |
Front tire | 7.50-16 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
References | |
|---|---|
 | |
1975 Spring Buyers Guide published by J.I. Case | |
Time-saving experts published in 1975, by J.I. Case | |
"Specializing" for Specialists published in 1978, by J.I. Case | |
Specialization... the payoff in farming published in 1980, by J.I. Case | |
The new look in farm power published in 1981, by J.I. Case |
Engine
Engine Detail — 219 ci / 3.6 L Diesel
Manufacturer | David Brown |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 219 ci
3.6 L |
Bore/Stroke | 3.939x4.50 inches
100 x 114 mm |
Transmission
Transmission options | |
|---|---|
12-speed synchromesh | |
12-speed partial power shift |
Transmission — 12 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 12 forward and 4 reverse |
Transmission — Hydra-Shift
Transmission | Hydra-Shift |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Dimensions
J.I. Case 1210 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 90 inches
228 cm |
Weight | 7,100 lbs
3220 kg |
