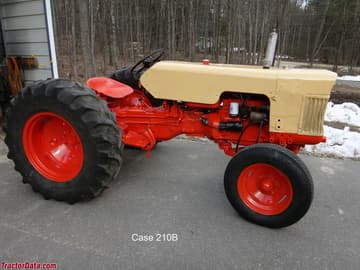

J.I. Case 210-B
The J.I. Case 210-B is a tractor produced by J I Case. It is equipped with a 126.5 ci 2.1 L engine. Transmission: Tripl-Range. Operating weight: 2862 lbs 1298 kg.
Fuel & Capacities
13 gal
49.2 L
Transmission
Tripl-Range
Operating Weight
2862 lbs
1298 kg
J I Case J.I. Case 210-B Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1958 - 1959
200B SeriesUtility tractor |
|---|---|
1958 - 1959 | |
200B Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 364 |
Variants | |
|---|---|
210-B | utility |
211-B | row-crop |
J.I. Case 210-B Engine | |
|---|---|
J.I. Case 2.1L 4-cyl gasoline | |
Fuel tank | 13 gal
49.2 L |
Engine details ...  | |
J.I. Case 210-B Power | |
|---|---|
Drawbar (claimed) | 25 hp
18.6 kW |
PTO (claimed) | 30 hp
22.4 kW |
Plows | 2 |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 533@1750 |
Dimensions & Tires | |
|---|---|
Wheelbase | 75.5 inches
191 cm |
Weight | 2862 lbs
1298 kg |
Front tire | 5.50-16 |
Rear tire | 10-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | positive |
Charging system | generator |
Battery volts | 6 |
Battery AH | 100 |
References | |
|---|---|
 | |
Operator's Instruction Manual 200B Series Wheel Tractors (9-462) published in 1958 | |
J.I. Case presents published in 1957 |
Engine
Engine Detail — 126.5 ci / 2.1 L Gasoline
Manufacturer | J.I. Case |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 126.5 ci
2.1 L |
Bore/Stroke | 3.125x4.125 inches
79 x 105 mm |
Fuel system | carburetor |
Air cleaner | oil bath |
Compression | 7.5:1 |
Rated RPM | 1900 |
Idle RPM | 500-2050 |
Firing order | 1-3-4-2 |
Starter volts | 6 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 12 qts
11.4 L |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.014 inches (cold)
0.356 mm |
Exhaust valve clearance | 0.014 inches (cold)
0.356 mm |
Transmission
Transmission options | |
|---|---|
4-speed gear | |
12-speed gear | |
8-speed mechanical shuttle |
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | 235mm dry disc |
Oil capacity | 28 qts
26.5 L |
With 10-24 rear tires. | |
 | |

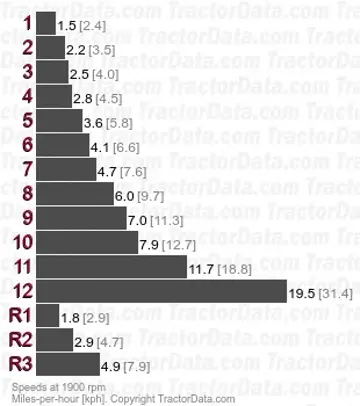

Transmission — Tripl-Range
Transmission | Tripl-Range |
Type | gear |
Gears | 12 forward and 3 reverse |
Clutch | 235mm dry disc |
With 10-24 rear tires. | |
 | |
Transmission — 8 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Clutch | 235mm dry disc |
Oil capacity | L1:L2:L3:L4:H1:H2:H3:H4 qts
0.0 L |
1900:1.4:2.1:2.8:9.3:2.3:3.3:4.5:15.0 qts
1798.2 L |
Dimensions
J.I. Case 210-B Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 10-24 |
Ag front | 6.00-16 |
Ag rear | 11-24 |
Dimensions | |
|---|---|
Wheelbase | 75.5 inches
191 cm |
Length | 126.6 inches
321 cm |
Width | 60 inches
152 cm |
Height (steering wheel) | 55.5 inches
140 cm |
Weight | 2862 lbs
1298 kg |
Front tread | 52 inches
132 cm |
Rear tread | 48 to 68 inches
121 to 172 cm |
