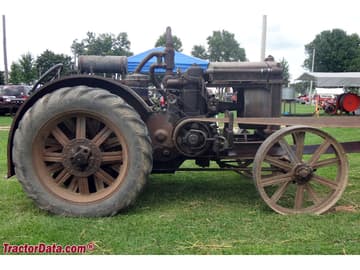

J.I. Case 22-40
The J.I. Case 22-40 is a tractor produced by J I Case. It is equipped with a 641 ci 10.5 L engine. Transmission: J.I. Case. Operating weight: 10,200 lbs 4626 kg.
Fuel & Capacities
Kerosene
Transmission
J.I. Case
Operating Weight
10,200 lbs
4626 kg
Overview
 | 1919 - 1924
Crossmotor SeriesStandard-tread tractor
Crossmotor Series
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | J.I. Case |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
Total built | 1,750 |
J.I. Case 22-40 Engine | |
|---|---|
J.I. Case 10.5L 4-cyl kerosene | |
Engine details ...  |
J.I. Case 22-40 Transmission | |
|---|---|
2-speed sliding gear | |
Transmission details ...  |
J.I. Case 22-40 Power | |
|---|---|
Drawbar (claimed) | 22 hp
16.4 kW |
Belt (claimed) | 40 hp
29.8 kW |
Plows | 4-5 (14-inch) |
Drawbar (tested) | 31.27 hp
23.3 kW |
Belt (tested) | 49.97 hp
37.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 10,200 lbs
4626 kg |
Rear tire | 56x16 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 16.5 inches
41 cm |
Width | 8.5 inches
21 cm |
RPM | 850 |
Speed | 3,669 ft/min
1118.31 meters/min |
Engine
Engine Detail — 641 ci / 10.5 L Kerosene
Manufacturer | J.I. Case |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 641 ci
10.5 L |
Bore/Stroke | 5.50x6.75 inches
140 x 171 mm |
Rated RPM | 850 |
Starter type | hand-crank |
Transmission
Transmission — J.I. Case
Transmission | J.I. Case |
Type | sliding gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
J.I. Case 22-40 Tires | |
|---|---|
Ag rear | 56x16 (steel) |
Dimensions | |
|---|---|
Length | 153 inches
388 cm |
Width | 82.5 inches
209 cm |
Height | 79.5 inches
201 cm |
Weight | 10,200 lbs
4626 kg |
Tests
Nebraska Tractor Test 5 | |
|---|---|
Kerosene 2-speed 2WD
April 7 - May 6, 1920
Link: Nebraska Tractor Test 5 file | |
Belt power (max) | 49.97 hp
37.3 kW |
Belt fuel use (max) | 6.9 gal/hour
26.1 l/hour |
Drawbar performance | |
Max power | 31.27 hp
23.3 kW |
Max pull | 4,965 lbs
2252 kg |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 22-40.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
J I Case J.I. Case 22-40 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 22-40.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
