J.I. Case 310
The J.I. Case 310 is a tractor produced by J I Case. It is equipped with a 148 ci 2.4 L engine. Transmission: Tripl-Range. Operating weight: 3200 lbs 1451 kg.
Fuel & Capacities
LP Gas
Transmission
Tripl-Range
Operating Weight
3200 lbs
1451 kg
J I Case J.I. Case 310 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1956 - 1958
300 SeriesUtility tractor |
|---|---|
1956 - 1958 | |
300 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 3,175 |
Original price was $2,500 in 1958 | |
Variants | |
|---|---|
300 | diesel utility |
301 | diesel row-crop |
302 | diesel high-crop |
310 | gasoline utility |
311 | gasoline row-crop |
312 | gasoline high-crop |
320 | industrial |
J.I. Case 310 Power | |
|---|---|
Drawbar (claimed) | 23 hp
17.2 kW |
Belt (claimed) | 29 hp
21.6 kW |
Plows | 3 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
6-inch disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission (4-speed) |
live (Tripl-Range) | |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 75.5 inches
191 cm |
Weight | 3200 lbs
1451 kg |
Front tire | 6.00x16 |
Rear tire | 11x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | positive |
Battery volts | 6 |
References | |
|---|---|
 | |
New Case "300" published in 1955, by J.I. Case |
Engine
Engine options | |
|---|---|
J.I. Case 2.4L 4-cyl gasoline | |
J.I. Case 2.4L 4-cyl LP Gas |
Engine Detail — 148 ci / 2.4 L Gasoline
Manufacturer | J.I. Case G148 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148 ci
2.4 L |
Bore/Stroke | 3.375x4.125 inches
86 x 105 mm |
Air cleaner | oil bath |
Compression | 7.1:1 |
Rated RPM | 1750 |
Starter volts | 6 |
Oil capacity | 4 qts
3.8 L |
Coolant capacity | 12 qts
11.4 L |
J.I. Case 310 Engine | |
|---|---|
 |
Engine Detail — 148 ci / 2.4 L LP Gas
Manufacturer | J.I. Case |
Fuel Type | LP Gas |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148 ci
2.4 L |
Bore/Stroke | 3.375x4.125 inches
86 x 105 mm |
Air cleaner | oil bath |
Rated RPM | 1750 |
Starter volts | 6 |
Transmission
Transmission options | |
|---|---|
4-speed sliding gear | |
12-speed | |
8-speed mechanical shuttle |
Transmission — 4 forward and 1 reverse sliding gear
Type | sliding gear |
Gears | 4 forward and 1 reverse |
Clutch | 234.9mm dry disc |
 | |

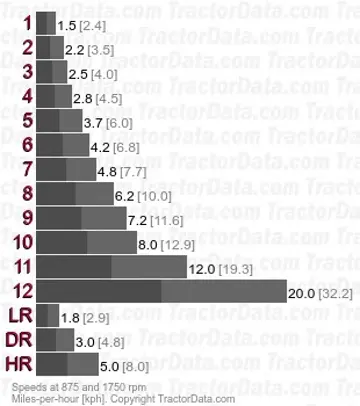

Transmission — Tripl-Range
Transmission | Tripl-Range |
Gears | 12 forward and 3 reverse |
Clutch | 234.9mm dry disc (master foot clutch) |
wet discs (traction hand clutch) | |
Four gears (1-4) plus reverse (R) in three ranges (low, direct, high). | |
 | |
J.I. Case 310 Transmission | |
|---|---|
 |
Transmission — 8 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Dimensions
J.I. Case 310 Tires | |
|---|---|
Ag front | 6.00x16 |
Ag rear | 11x24 |
Dimensions | |
|---|---|
Wheelbase | 75.5 inches
191 cm |
Length | 125 inches
317 cm |
Height | 56 inches
142 cm |
Weight | 3200 lbs
1451 kg |
Ground clearance | 12 inches
30 cm |
Front tread | 47.5 inches
120 cm |
Rear tread | 48 to 68 inches
121 to 172 cm |
