J.I. Case 312
The J.I. Case 312 is a tractor produced by J I Case. It is equipped with a 148 ci 2.4 L engine. Transmission: Tripl-Range.
Fuel & Capacities
LP Gas
Transmission
Tripl-Range
J I Case J.I. Case 312 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1957
300 SeriesHigh-Clearance tractor |
|---|---|
1957 | |
300 Series | |
High-Clearance tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
High-Clearance tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 458 |
Variants | |
|---|---|
300 | diesel standard |
301 | diesel row-crop |
302 | diesel high-crop |
310 | gasoline standard |
311 | gasoline row-crop |
312 | gasoline high-crop |
320 | industrial |
J.I. Case 312 Power |
|---|
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine options | |
|---|---|
J.I. Case 2.4L 4-cyl gasoline | |
Case 2.4L 4-cyl LP Gas |
Engine Detail — 148 ci / 2.4 L Gasoline
Manufacturer | J.I. Case G148 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148 ci
2.4 L |
Bore/Stroke | 3.375x4.125 inches
86 x 105 mm |
Air cleaner | oil bath |
Compression | 7.1:1 |
Rated RPM | 1750 |
Starter type | electric |
Engine Detail — 148 ci / 2.4 L LP Gas
Manufacturer | Case |
Fuel Type | LP Gas |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148 ci
2.4 L |
Bore/Stroke | 3.375x4.125 inches
86 x 105 mm |
Transmission
Transmission options | |
|---|---|
4-speed gear | |
12-speed |
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
With 11-28 rear tires. | |
 | |

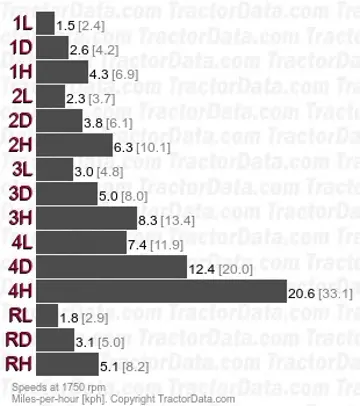

Transmission — Tripl-Range
Transmission | Tripl-Range |
Gears | 12 forward and 3 reverse |
With 11-28 rear tires. | |
 | |
Dimensions
J.I. Case 312 Tires |
|---|
Dimensions |
|---|
