J.I. Case 351
The J.I. Case 351 is a tractor produced by J I Case. It is equipped with a 164.5 ci 2.7 L engine. Transmission: Tripl-Range. Operating weight: 3840 lbs 1741 kg.
Fuel & Capacities
18.4 gal
69.6 L
Transmission
Tripl-Range
Operating Weight
3840 lbs
1741 kg
Overview
 | 1957
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | J.I. Case |
Row-Crop tractor | |
Built in Rock Island, Illinois, USA | |
Total built | 905 |
Original price was $3,100 in 1958 | |
The Case 350 was an upgraded model 300 with a larger engine. It was available as the model 350 standard or the model 351 row-crop tractor. | |
Variants | |
|---|---|
350 | utility chassis |
351 | row-crop chassis |
J.I. Case 351 Engine | |
|---|---|
J.I. Case 2.7L 4-cyl gasoline | |
Fuel tank | 18.4 gal
69.6 L |
Engine details ...  | |
J.I. Case 351 Power | |
|---|---|
Belt (claimed) | 42 hp
31.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Type | Case Eagle Hitch |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 87.1 inches
221 cm |
Weight | 3840 lbs
1741 kg |
Front tire | 6.00-16 |
Rear tire | 12.4-36 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 9.25 inches
23 cm |
Width | 6 inches
15 cm |
RPM | 1290 |
References | |
|---|---|
 | |
350 Series Tractor published in 1957, by J.I. Case |
Engine
Engine Detail — 164.5 ci / 2.7 L Gasoline
Manufacturer | J.I. Case |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 164.5 ci
2.7 L |
Bore/Stroke | 3.6525x4.125 inches
93 x 105 mm |
Air cleaner | oil bath |
Compression | 7.25:1 |
Rated RPM | 1900 |
Torque | 136 lb-ft
184.4 Nm |
Torque RPM | 1300 |
Starter volts | 12 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 12 qts
11.4 L |
J.I. Case 351 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
12-speed gear | |
4-speed gear |

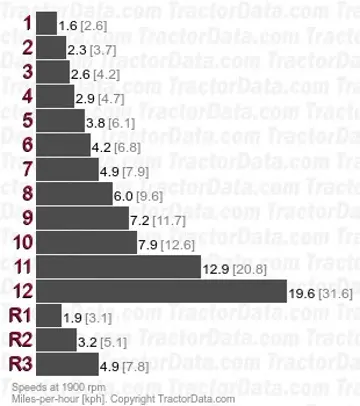

Transmission — Tripl-Range
Transmission | Tripl-Range |
Type | gear |
Gears | 12 forward and 3 reverse |
Four gears (1-4) plus reverse (R), with three ranges per gear (low, direct, high). | |
With 11.2x36 rear tires. | |
 | |
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Dimensions
J.I. Case 351 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 12.4-36 |
Ag rear | 11.2-36 |
13.9-36 | |
Dimensions | |
|---|---|
Wheelbase | 87.1 inches
221 cm |
Length | 138 inches
350 cm |
Width | 80.75 inches
205 cm |
Height (steering wheel) | 64.1 inches
162 cm |
Height (hood) | 60.25 inches
153 cm |
Weight | 3840 lbs
1741 kg |
Rear axle | 2.5 inch diameter
63 mm |
Front tread | 54 to 78 inches
137 to 198 cm |
Rear tread | 54 to 88 inches
137 to 223 cm |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 351.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
J I Case J.I. Case 351 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 351.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
