J.I. Case 800-B
The J.I. Case 800-B is a tractor produced by J I Case. It is equipped with a 267 ci 4.4 L engine. Transmission: Case-O-Matic.
Fuel & Capacities
22 gal
83.3 L
Transmission
Case-O-Matic
Overview
 | 1958 - 1959
800 B SeriesStandard-tread tractor
800 B Series
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | J.I. Case |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
Total built | 255 |
Variants | |
|---|---|
800B | diesel standard |
801B | diesel row-crop |
802B | diesel Western special |
803B | diesel high-crop |
810B | gas standard |
811B | gas row-crop |
812B | gas Western special |
813B | gas high-crop |
J.I. Case 800-B Engine | |
|---|---|
J.I. Case 4.4L 4-cyl diesel | |
Fuel tank | 22 gal
83.3 L |
Engine details ...  | |
J.I. Case 800-B Transmission | |
|---|---|
8-speed torque converter | |
Transmission details ...  |
J.I. Case 800-B Power | |
|---|---|
Belt (claimed) | 54 hp
40.3 kW |
Plows | 5 |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
Mechanical disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | Case Eagle Hitch (optional) |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.75 inches
210 cm |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 10.5 inches
26 cm |
Width | 7.25 inches
18 cm |
RPM | 1128 |
References | |
|---|---|
 | |
800 5 Plow Tractor published in 1958, by J.I. Case | |
J.I. Case presents published in 1957 |
Engine
Engine Detail — 267 ci / 4.4 L Diesel
Manufacturer | J.I. Case |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 267 ci
4.4 L |
Bore/Stroke | 4.125x5.00 inches
105 x 127 mm |
Air cleaner | oil bath |
Compression | 15:1 |
Rated RPM | 1800 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 9 qts
8.5 L |
Coolant capacity | 30 qts
28.4 L |
J.I. Case 800-B Engine | |
|---|---|
 |
Transmission

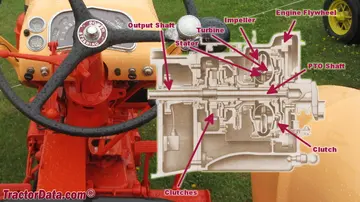

Transmission — Case-O-Matic
Transmission | Case-O-Matic |
Type | torque converter |
Gears | 8 forward and 2 reverse |
Clutch | hydraulic wet disc |
Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive. | |
J.I. Case 800-B Transmission | |
|---|---|
 |
Dimensions
J.I. Case 800-B Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 82.75 inches
210 cm |
Length | 133.75 inches
339 cm |
Height | 66.375 inches
168 cm |
Height (hood) | 61.375 inches
155 cm |
Front tread | 52/58 inches
132/147 cm |
Rear tread | 52/56/60/64 inches
132/142/152/162 cm |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 800-B.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
J I Case J.I. Case 800-B Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 800-B.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
