J.I. Case 801-B

The J.I. Case 801-B is a tractor produced by J I Case. It is equipped with a 267 ci 4.4 L engine. The rated power output is 54.42 hp 40.6 kW. Transmission: Case-O-Matic. Operating weight: 6800 lbs 3084 kg.

Overview

	1958 - 1960 800 B SeriesRow-Crop tractor
1958 - 1960
800 B Series
Row-Crop tractor

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $5,600 in 1960

Variants
800B	diesel standard
801B	diesel row-crop
802B	diesel Western special
803B	diesel high-crop
810B	gas standard
811B	gas row-crop
812B	gas Western special
813B	gas high-crop

J.I. Case 801-B Engine
J.I. Case 4.4L 4-cyl diesel
Fuel tank	22 gal 83.3 L
Engine details ...

J.I. Case 801-B Transmission
8-speed torque converter
Transmission details ...

J.I. Case 801-B Power
Belt (claimed)	54 hp 40.3 kW
Drawbar (tested)	51.38 hp 38.3 kW
Belt (tested)	54.42 hp 40.6 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	power
Differential mechanical disc brakes
Open operator station.

Tractor hitch
Type	Case Eagle Hitch

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	101.75 inches (wide front) 258 cm
	92.25 inches (tricycle) 234 cm
Weight	6800 lbs 3084 kg
Front tire	6.00-16
Rear tire	15.5-38
Full dimensions and tires ...

References
800 5 Plow Tractor published in 1958, by J.I. Case
J.I. Case presents published in 1957

Engine

Engine Detail — 267 ci / 4.4 L Diesel

Manufacturer	J.I. Case
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	267 ci 4.4 L
Bore/Stroke	4.125x5.00 inches 105 x 127 mm
Air cleaner	oil bath
Compression	15:1
Rated RPM	1800
Starter volts	12

J.I. Case 801-B Engine

Transmission

Transmission — Case-O-Matic

Transmission	Case-O-Matic
Type	torque converter
Gears	8 forward and 2 reverse
Clutch	hydraulic wet disc

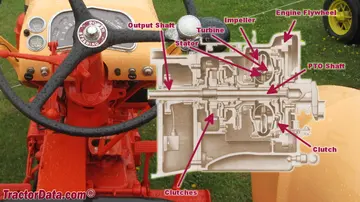

Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive.

J.I. Case 801-B Transmission

Dimensions

J.I. Case 801-B Tires
Ag front	6.00-16
Ag rear	15.5-38

Dimensions
Wheelbase	101.75 inches (wide front) 258 cm
	92.25 inches (tricycle) 234 cm
Length	152.75 inches (wide front) 387 cm
	143.375 inches (tricycle) 364 cm
Width	85.25 inches 216 cm
Height (hood)	66 inches 167 cm
Operating weight	6800 lbs 3084 kg
Ballasted weight	9538 lbs 4326 kg
Front tread	9.128 to 15.128 inches 23 to 38 cm (tricycle)
Front tread	53 to 82 inches 134 to 208 cm
Rear tread	52 to 88 inches 132 to 223 cm
Rear tread	52 to 96 inches 132 to 243 cm (PAVT)
Rear tread	52 to 108 inches 132 to 274 cm (long axle)
Rear tread	52 to 116 inches 132 to 294 cm (PAVT long axle)

Tests

Nebraska Tractor Test 680
Diesel 8-speed 2WD October 27 - November 14, 1958 Link: Nebraska Tractor Test 680 file
Belt power (max)	54.42 hp 40.6 kW
Belt fuel use (max)	4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power	51.38 hp 38.3 kW
Fuel use	4.1 gal/hour 15.5 l/hour
Gear 4 used for power test.
Max pull	7,888 lbs 3577 kg
Gear 2 used for pull test.
