J.I. Case 813-B
The J.I. Case 813-B is a tractor produced by J I Case. It is equipped with a 267 ci 4.4 L engine. Transmission: Case-O-Matic.
Fuel & Capacities
Gasoline
Transmission
Case-O-Matic
J I Case J.I. Case 813-B Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1958 - 1959
800 B SeriesHigh-Clearance tractor |
|---|---|
1958 - 1959 | |
800 B Series | |
High-Clearance tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
High-Clearance tractor | |
Built in Racine, Wisconsin, USA | |
Total built | 30 |
Variants | |
|---|---|
800B | diesel standard |
801B | diesel row-crop |
802B | diesel Western special |
803B | diesel high-crop |
810B | gas standard |
811B | gas row-crop |
812B | gas Western special |
813B | gas high-crop |
J.I. Case 813-B Transmission | |
|---|---|
8-speed torque converter | |
Transmission details ...  |
J.I. Case 813-B Power | |
|---|---|
Belt (claimed) | 54 hp
40.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
Mechanical disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
800 5 Plow Tractor published in 1958, by J.I. Case |
Engine
Engine options | |
|---|---|
J.I. Case 4.4L 4-cyl gasoline | |
J.I. Case 4.4L 4-cyl LP-gas |
Engine Detail — 267 ci / 4.4 L Gasoline
Manufacturer | J.I. Case |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 267 ci
4.4 L |
Bore/Stroke | 4.125x5.00 inches
105 x 127 mm |
Air cleaner | oil bath |
Compression | 6.5:1 |
Rated RPM | 1800 |
Starter type | electric |
Engine Detail — 267 ci / 4.4 L
Manufacturer | J.I. Case |
Configuration | 4-cylinder, liquid-cooled |
LP-gas | |
Displacement | 267 ci
4.4 L |
Bore/Stroke | 4.125x5.00 inches
105 x 127 mm |
Air cleaner | oil bath |
Compression | 6.5:1 |
Rated RPM | 1800 |
Starter type | electric |
Transmission

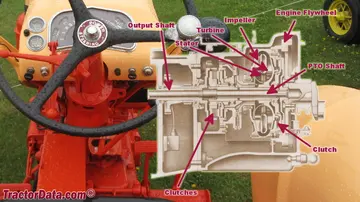

Transmission — Case-O-Matic
Transmission | Case-O-Matic |
Type | torque converter |
Gears | 8 forward and 2 reverse |
Clutch | hydraulic wet disc |
Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive. | |
J.I. Case 813-B Transmission | |
|---|---|
 |
Dimensions
J.I. Case 813-B Tires |
|---|
Dimensions |
|---|
