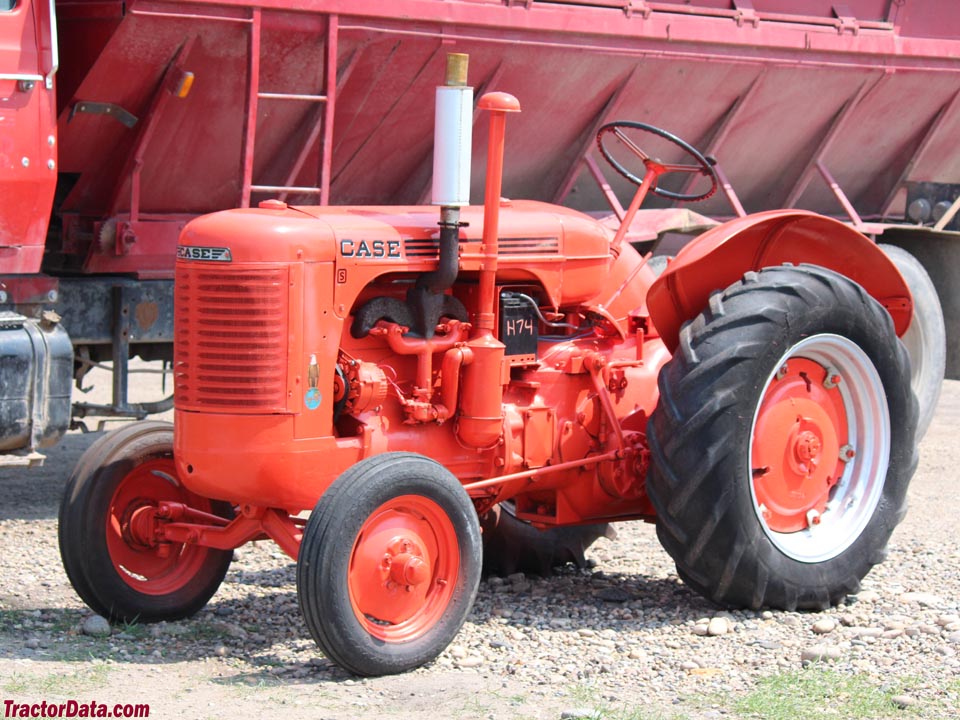

J.I. Case S
The J.I. Case S is a tractor produced by J I Case. It is equipped with a 165.1 ci 2.7 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 4376 lbs 1984 kg.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
4376 lbs
1984 kg
J I Case J.I. Case S Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1941 - 1952
Standard-tread tractor |
|---|---|
1941 - 1952 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | J.I. Case |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
The model S was the standard, fixed-wide-front version of the S series. The SC was the row-crop version. | |
Variants | |
|---|---|
S | standard |
SC | row-crop |
SC-3 | tricycle row-crop |
SC-4 | fixed-front row-crop |
SI | industrial |
SO | orchard |
J.I. Case S Transmission | |
|---|---|
4-speed unsynchronized gear | |
Transmission details ...  |
J.I. Case S Power | |
|---|---|
Drawbar (claimed) | 16 hp
11.9 kW |
Belt (claimed) | 21 hp
15.7 kW |
Plows | 2 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. Steel pan seat with spring suspension. |
Tractor hitch | |
|---|---|
Type | Case Eagle Hitch |
Power Take-off (PTO) | |
|---|---|
Rear PTO | continuous |
live *After 1953 | |
Rear PTO Type | 541 |
Dimensions & Tires | |
|---|---|
Wheelbase | 66 inches
167 cm |
Weight | 4376 lbs
1984 kg |
Front tire | 5.00-15 |
Rear tire | 11-26 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 9.25 inches
23 cm |
Width | 6.375 inches
16 cm |
RPM | 1078 |
Speed | 2600 ft/min
792.48 meters/min |
Electrical | |
|---|---|
Ground | negative |
Charging system | generator |
Battery volts | 6 |
References | |
|---|---|
 | |
Case Eagle Hitch Tractors published in 1953, by J.I. Case | |
New Case "S" Series Tractors published in 1941, by J.I. Case | |
Model "S" Series Tractors published in 1950, by J.I. Case | |
4 Great Tractors published in 1945, by J.I. Case |
Engine
Engine options | |
|---|---|
J.I. Case 2.5L 4-cyl gasoline | |
J.I. Case 2.7L 4-cyl gasoline |
Engine Detail — 153.9 ci / 2.5 L Gasoline
Manufacturer | J.I. Case |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Original engine, used until 1953. | |
Displacement | 153.9 ci
2.5 L |
Bore/Stroke | 3.50x4.00 inches
89 x 102 mm |
Air cleaner | oil bath |
Rated RPM | 1550 |
Starter volts | 6 |
Coolant capacity | 16 qts
15.1 L |
Engine Detail — 165.1 ci / 2.7 L Gasoline
Manufacturer | J.I. Case |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
The larger, 2.7L, engine was introduced in 1953 on the J.I. Case S. | |
Displacement | 165.1 ci
2.7 L |
Bore/Stroke | 3.625x4.00 inches
92 x 102 mm |
Air cleaner | oil bath |
Rated RPM | 1550 |
Starter volts | 6 |
J.I. Case S Engine | |
|---|---|
 |
Transmission
Transmission — 4 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 4 forward and 1 reverse |
Clutch | mechanical wet disc |
With 11-26 rear tires. | |
 | |
Dimensions
J.I. Case S Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11-26 |
Ag front | 25x4 (steel) |
Ag rear | 42x8 (steel) |
Dimensions | |
|---|---|
Wheelbase | 66 inches
167 cm |
Length | 108.5 inches
275 cm |
Width | 56.25 inches
142 cm |
Height (hood) | 51 inches
129 cm |
Weight | 4376 lbs
1984 kg |
Clearance (front axle) | 11.25 inches
28 cm |
Clearance (rear axle) | 18.75 inches
47 cm |
Rear tread | 47.5 inches
120 cm |
