JCB Fastrac 2140
The JCB Fastrac 2140 is a tractor produced by Jcb. It is equipped with a 359 ci 5.9 L engine. The listed engine power is Diesel (listed): 142 hp / 105.9 kW. Transmission: 54 forward and 18 reverse. Drive type: 4x4 4WD. Operating weight: 14,239 lbs 6458 kg.
Engine Power
Diesel (listed): 142 hp / 105.9 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
58.1 gal
219.9 L
Transmission
54 forward and 18 reverse
Operating Weight
14,239 lbs
6458 kg
Overview
 | 2005 - 2007
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | JCB |
Four-wheel Drive (4WD) tractor | |
JCB Fastrac 2140 Engine | |
|---|---|
Cummins 5.9L 6-cyl diesel | |
Engine details ...  |
JCB Fastrac 2140 Transmission | |
|---|---|
54-speed partial power shift | |
Transmission details ...  |
JCB Fastrac 2140 Power | |
|---|---|
Engine | 142 hp
105.9 kW |
PTO (claimed) | 132 hp
98.4 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Steering | hydrostatic power |
ABS brakes | |
Cab standard with air conditioning | |
Capacity | |
|---|---|
Fuel | 58.1 gal
219.9 L |
Hydraulic system | 31.7 gal
120.0 L |
Hydraulics | |
|---|---|
Capacity | 31.7 gal
120.0 L |
Valves | 3 or 4 |
Total flow | 16.2 gpm
61.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 13,230 lbs
6001 kg |
Front Hitch | II (optional) |
Front lift (at ends) | 5,510 lbs
2499 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1894 |
1000@2088 | |
Front PTO | independent (optional) |
Front PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 111.4 inches
282 cm |
Weight | 14,239 lbs
6458 kg |
Front tire | 480/70R30 |
Rear tire | 480/70R30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 150 |
Battery volts | 12 |
Engine
Engine Detail — 359 ci / 5.9 L Diesel
Manufacturer | Cummins QSB30 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.016x4.724 inches
102 x 120 mm |
Power | 142 hp
105.9 kW |
Air cleaner | dual dry element |
Rated RPM | 2200 |
Torque | 440.3 lb-ft
597.0 Nm |
Torque RPM | 1500 |
Starter volts | 12 |
Transmission
Transmission — 54 forward and 18 reverse partial power shift
Type | partial power shift |
Gears | 54 forward and 18 reverse |
Clutch | hydraulic wet disc |

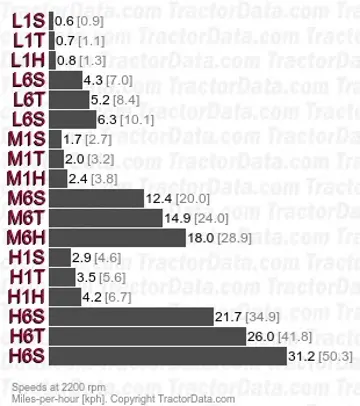

Six gears (1-6) in three ranges (Llow/Medium/High) plus reverse with three-speed Autoshift in each gear (Snail/Tortoise/Hare). | |
With 540/60R30 tires. | |
 | |
Dimensions
JCB Fastrac 2140 Tires | |
|---|---|
Ag front | 480/70R30 |
Ag rear | 480/70R30 |
Ag front | 540/65R30 |
Ag rear | 540/65R30 |
Dimensions | |
|---|---|
Wheelbase | 111.4 inches
282 cm |
Length | 202.0 inches
513 cm |
Width | 90.9 inches
230 cm |
Height | 113.0 inches
287 cm |
Weight | 14,239 lbs
6458 kg |
Ground clearance | 15.8 inches
40 cm |
Front tread | 72 to inches
182 to 0 cm |
Rear tread | 72 to inches
182 to 0 cm |
Photos
JCB Fastrac 2140 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Jcb Fastrac 2140 based on its 142 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Jcb Fastrac 2140.
Estimated Continuous Field Runtime: 7.9 hrs
Approximately 7.9 hours of continuous field operation at ~75% rated power on a full tank (58.1 gal / 219.9 L).
Estimated 75% Load Fuel Burn~7.4 gal/hr (28 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Jcb Fastrac 2140 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Jcb Fastrac 2140.
Converted Equivalents:
Horsepower (HP)142 hp
Kilowatts (kW)105.9 kW
Metric Horsepower (PS / CV)144 PS
