John Deere 2140

The John Deere 2140 is a tractor produced by John Deere. It is equipped with a 239.2 ci 3.9 L engine. The listed engine power is Diesel (net): 80.5 hp / 60.0 kW; Diesel (gross): 89.9 hp / 67.0 kW. Transmission: Power Synchron. Operating weight: 7800 to 8700 pounds.

Overview

	1980 - 1987 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 2140 Engine
John Deere 3.9L 4-cyl diesel
Engine details ...

John Deere 2140 Power
Engine (gross)	89.9 hp 67.0 kW
Engine (net)	80.5 hp 60.0 kW
PTO (claimed)	72.4 hp 54.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post ROPS. Sound-Gard cab optional.

Capacity
Fuel	22.4 gal 84.8 L
Hydraulic system	11 gal 41.6 L

Hydraulics
Type	closed center
Capacity	11 gal 41.6 L
Pressure	2466 psi 170.0 bar
Valves	1 to 3
Pump flow	12.4 gpm 46.9 lpm
Total flow	10.3 gpm 39.0 lpm

Tractor hitch
Rear Type	I/II
Rear lift	7,850 lbs 3560 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	90.2 inches 229 cm
Weight	7800 to 8700 pounds
Front tire	10.00-16
Rear tire	13.6-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Batteries	2
Battery volts	12

References
Operator's Manual 145 Loader (OMW21474)
Den Nye 2140 published in 1980, by John Deere
2140 Tractor X-E Series published in 1984, by John Deere
New Profiles of Performance published in 1979, by John Deere
Move up to John Deere... published in 1981

Engine

Engine Detail — 239.2 ci / 3.9 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	239.2 ci 3.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	80.5 hp 60.0 kW
Power (gross)	89.9 hp 67.0 kW
Fuel system	direct injection
Compression	16.8:1
Rated RPM	2500
Torque	199 lb-ft 269.8 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	16 qts 15.1 L

Transmission

Transmission options
8-speed partially synchronized
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Four synchronized gears in two ranges.
With 18.4x34 rear tires.

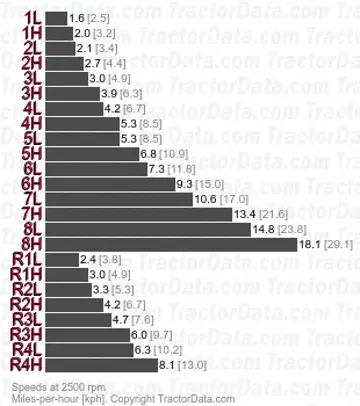

Transmission — Power Synchron

Transmission	Power Synchron
Type	two-speed power shift
Gears	16 forward and 8 reverse
Eight forward and four reverse with high/low shifter.
With 13.6/12-38 rear tires.

Dimensions

John Deere 2140 Tires
Ag front	10.00-16 (2WD)
	11.2-28 (4WD)
	13.6-24 (4WD)
Ag rear	13.6-38
	16.9-34

Dimensions
Wheelbase	90.2 inches 229 cm
Length	155 inches 393 cm
Height	105 inches 266 cm
2WD Weight	7800 lbs 3538 kg
4WD Weight	8700 lbs 3946 kg
4WD Ground clearance	20.2 inches 51 cm
2WD Ground clearance	25.8 inches 65 cm
