John Deere 3650
The John Deere 3650 is a tractor produced by John Deere. It is equipped with a 359 ci 5.9 L engine. The listed engine power is Diesel (listed): 114.4 hp / 85.3 kW. Transmission: Power Synchron. Operating weight: 13,510 lbs 6128 kg.
Engine Power
Diesel (listed): 114.4 hp / 85.3 kW
Fuel & Capacities
45 gal
170.3 L
Transmission
Power Synchron
Operating Weight
13,510 lbs
6128 kg
Overview
 | 1986 - 1993
3050 SeriesUtility tractor
3050 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Mannheim, Baden-Württemberg, Germany | |
John Deere 3650 Engine | |
|---|---|
John Deere 5.9L 6-cyl diesel | |
Engine details ...  |
John Deere 3650 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
John Deere 3650 Power | |
|---|---|
Engine | 114.4 hp
85.3 kW |
PTO (claimed) | 104.72 hp
78.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard with optional air-conditioning. | |
Capacity | |
|---|---|
Fuel | 45 gal
170.3 L |
Hydraulic system | 14.53 gal
55.0 L |
Hydraulics | |
|---|---|
Type | closed center constant pressure |
Capacity | 14.53 gal
55.0 L |
Pressure | 2698 psi
186.0 bar |
Total flow | 11.62 gpm
44.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift (at ends) | 11620 lbs
5270 kg |
Front Hitch | II |
Front lift (at ends) | 3594 lbs
1630 kg |
6526 lbsOptOptional
2960 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2178 |
1000@2172 | |
Front PTO | independent |
Clutch | hydraulic wet disc |
Front PTO Type | 1000 |
Engine RPM | 1000@2172 |
Dimensions & Tires | |
|---|---|
Wheelbase | 101.8 inches
258 cm |
Weight | 13,510 lbs
6128 kg |
Front tire | 16.9x24 |
Rear tire | 520/70x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 55 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 88 |
References | |
|---|---|
 | |
3650 Traktor published in 1986, by John Deere |
Engine
Engine Detail — 359 ci / 5.9 L Diesel
Manufacturer | John Deere 6359TL007 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.193x4.331 inches
107 x 110 mm |
Power | 114.4 hp
85.3 kW |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 13.21 qts
12.5 L |
Coolant capacity | 20.1 qts
19.0 L |
Transmission

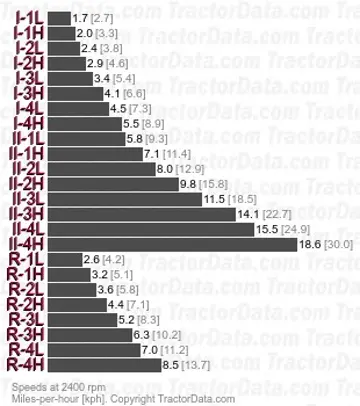

Transmission — Power Synchron
Transmission | Power Synchron |
Gears | 16 forward and 8 reverse |
Four gears in two ranges, plus reverse range, with two-speed low/high shift. | |
With 18.4-38 rear tires. | |
 | |
Dimensions
John Deere 3650 Tires | |
|---|---|
Ag front | 16.9x24 |
Ag rear | 520/70x38 |
Dimensions | |
|---|---|
Wheelbase | 101.8 inches
258 cm |
Length | 192.9 inches
489 cm |
Width | 89.37 inches
226 cm |
Height | 113.4 inches
288 cm |
Weight | 13,510 lbs
6128 kg |
Ground clearance | 13.4 inches
34 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 3650 based on its 114.4 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 3650.
Estimated Continuous Field Runtime: 7.6 hrs
Approximately 7.6 hours of continuous field operation at ~75% rated power on a full tank (45 gal / 170.3 L).
Estimated 75% Load Fuel Burn~5.9 gal/hr (22.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 3650 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 3650.
Converted Equivalents:
Horsepower (HP)114.4 hp
Kilowatts (kW)85.3 kW
Metric Horsepower (PS / CV)116 PS
Direct Competitor Comparison
Compare John Deere 3650 against same-era industry alternatives in the same horsepower class.
Current Model
John Deere
John Deere 3650
Engine Power:Diesel (listed): 114.4 hp / 85.3 kW
★ Baseline Reference
