John Deere 3030

The John Deere 3030 is a tractor produced by John Deere. It is equipped with a 329 ci 5.4 L engine. The rated power output is 84.5 hp 63.0 kW. Transmission: Hi-Lo. Operating weight: 7297 to 8069 pounds.

Overview

	1978 - 1979 Row-Crop tractor
1978 - 1979
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany

Variants
3030LS	12-speed

John Deere 3030 Engine
John Deere 5.4L 6-cyl diesel
Engine details ...

John Deere 3030 Transmission
12-speed
Transmission details ...

John Deere 3030 Power
Engine (gross)	93.8 hp 69.9 kW
Engine (net)	84.5 hp 63.0 kW
PTO (claimed)	76.4 hp 57.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Four-post ROPS. Cab available.

Capacity
Fuel	28 gal 106.0 L
Hydraulic system	15 gal 56.8 L

Hydraulics
Type	closed center
Capacity	15 gal 56.8 L
Pressure	2248 psi 155.0 bar
Pump flow	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	7452 lbs 3380 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2170
	1000@2170

Dimensions & Tires
Wheelbase	97 inches 246 cm
Weight	7297 to 8069 pounds
Front tire	7.50-20
2WD Rear tire	16.9-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Batteries	2
Battery volts	12
Battery AH	55

References
Product Information Manual published in 1977, by John Deere

Engine

Engine Detail — 329 ci / 5.4 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	329 ci 5.4 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Power (net)	84.5 hp 63.0 kW
Power (gross)	93.8 hp 69.9 kW
Fuel system	direct injection
Air cleaner	dry
Compression	16.8:1
Rated RPM	2500
Idle RPM	750-2660
Operating RPM	1200-2500
Torque	210.2 lb-ft 285.0 Nm
Torque RPM	1200
Starter volts	12
Oil capacity	12.2 qts 11.5 L
Coolant capacity	20.1 qts 19.0 L

Transmission

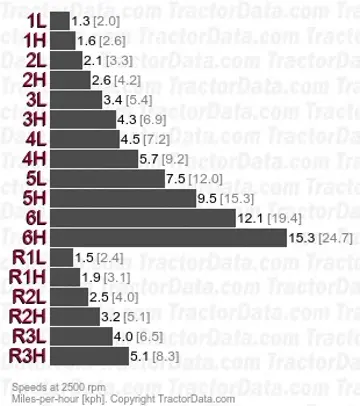

Transmission — Hi-Lo

Transmission	Hi-Lo
Gears	12 forward and 6 reverse
Clutch	dry disc
Oil capacity	60.2 qts 57.0 L
With 16.9-38 rear tires and 25KPH transmission option.

Dimensions

John Deere 3030 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 16.9-38
4WD Standard tires (ag)	Front: 11.2-24. Rear: 16.9-38

Dimensions
Wheelbase	97 inches 246 cm
Length	157.5 inches 400 cm
Width	80.3 inches*Minimum width. 203 cm
Height (ROPS)	105.7 inches 268 cm
Height (cab)	107.5 inches 273 cm

John Deere 3030 Weight
	8069 lbs 3660 kg
Shipping	7297 lbs 3309 kg
Max capacity	13228 lbs 6000 kg
