John Deere 5080M
The John Deere 5080M is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The listed engine power is Diesel (gross): 80 hp / 59.7 kW. Transmission: John Deere SyncReverser. Operating weight: 8157 lbs 3700 kg.
Engine Power
Diesel (gross): 80 hp / 59.7 kW
Transmission
John Deere SyncReverser
Operating Weight
8157 lbs
3700 kg
Overview
 | 2009 - 2013
5M SeriesUtility tractor
5M Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
John Deere 5080M Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Engine details ...  |
John Deere 5080M Power | |
|---|---|
Engine (gross) | 80 hp
59.7 kW |
Engine (max) | 81.5 hp
60.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic rear |
Steering | hydrostatic power |
Wet disc brakes | |
Trailer brakes | hydraulic *Optional. |
pneumatic *Optional. | |
Cab standard. Optional air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2901 psi
200.0 bar |
Rear valves | 3 *Maximum |
Mid valves | 2 *Maximum |
Pump flow | 19.55 gpm
74.0 lpm |
24.8 gpm*Optional.
93.9 lpm | |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | lower-link draft control *Mechanical standard, electronic optional. |
Rear lift (at ends) | 8093 lbs
3670 kg |
Front Hitch | II OptOptional |
Front lift (at ends) | 6519 lbs
2957 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet discs |
Rear PTO Type | 540/540E/ground |
540/540E | |
540/540E/1000 | |
Engine RPM | 540@2100 |
540E@1645 | |
1000@2100 | |
Front PTO | independent OptOptional |
Clutch | electro-hydraulic wet discs |
Front PTO Type | 1000 |
Engine RPM | 1000@21080 |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
Weight | 8157 lbs
3700 kg |
Front tire | 13.6R24 |
Rear tire | 16.9R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
5 Series published in 2009, by John Deere |
Engine
Engine Detail — 276 ci / 4.5 L Diesel
Manufacturer | John Deere 4045HL286 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 276 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Emissions | Tier III |
Rated Power (gross) | 80 hp
59.7 kW |
Maximum Power (gross) | 81.5 hp
60.8 kW |
Rated RPM | 2200 |
Idle RPM | 875-2350 |
Operating RPM | 1500-2200 |
Torque | 249 lb-ft
337.6 Nm |
Torque RPM | 1600 |
Firing order | 1-3-4-2 |
Starter | electric |
Starter volts | 12 |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
John Deere 5080M Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
32-speed two-speed power shift | |
16-speed power shuttle | |
16-speed partially synchronized |

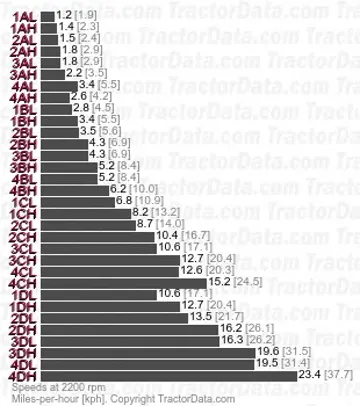

Transmission — John Deere PowrReverser Plus
Transmission | John Deere PowrReverser Plus |
Type | two-speed power shift |
Gears | 32 forward and 16 reverse |
Clutch | electro-hydraulic wet disc |
Four gears (1-4) in four ranges (A-D) with left hand power shuttle lever. Push-button high/low power shift in each gear. Gear shifts (1-4) are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift ranges. | |
With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds. | |
 | |

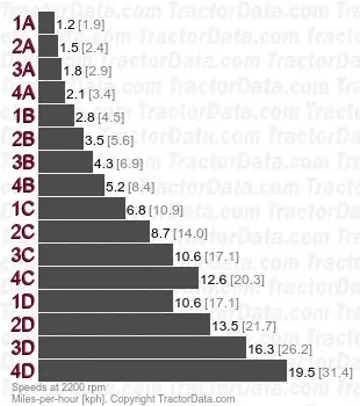

Transmission — John Deere PowrReverser
Transmission | John Deere PowrReverser |
Type | power shuttle |
Gears | 16 forward and reverse |
Clutch | electro-hydraulic wet disc |
Four synchronized gears (1-4) in four ranges (A-D) with left-hand power shuttle lever. Tractor must be stopped, and clutch used, to shift ranges. | |
With 420/85R30 rear tires and 30 kph option. Reverse speeds are 10% faster than forward speeds. | |
 | |
Transmission — John Deere SyncReverser
Transmission | John Deere SyncReverser |
Type | partially synchronized |
Gears | 16 forward and reverse |
Clutch | electro-hydraulic wet disc |
Four synchronized gears (1-4) in four ranges (A-D) with left-hand shuttle lever. Clutch must be used to shift directions. Tractor must be stopped, and clutch used, to shift ranges. | |
With 420/85R30 rear tires. Reverse speeds are 10% faster than forward speeds. | |
 | |
Dimensions
John Deere 5080M Tires | |
|---|---|
Ag front | 13.6R24 |
Ag rear | 16.9R34 |
Dimensions | |
|---|---|
Wheelbase | 88.6 inches
225 cm |
Height (cab) | 102.2 inches
259 cm |
4WD Clearance (front axle) | 15.4 inches
39 cm |
John Deere 5080M Weight | |
|---|---|
Shipping | 8157 lbs
3700 kg |
2WD Max capacity | 12000 lbs
5443 kg |
4WD Max capacity | 13230 lbs
6001 kg |
Attachments
Attachment overview | |
|---|---|
John Deere 533 loader | |
John Deere 583 loader |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 5080M based on its 80 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 5080M.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 5080M Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 5080M.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
