John Deere 5080R

The John Deere 5080R is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 80 hp 59.7 kW. Transmission: AutoQuad Plus with underdrive. Operating weight: 8,157 lbs 3700 kg.

Overview

	2009 - 2016 5R SeriesUtility tractor
2009 - 2016
5R Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 5080R Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	34.3 gal 129.8 L
	39.6 gal (optional) 149.9 L
Engine details ...

John Deere 5080R Power
Engine	80 hp 59.7 kW
PTO (claimed)	67 hp 50.0 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Cab standard. Optional A/C.

Hydraulics
Type	load sensing pressure compensated
Pressure	2900 psi 200.0 bar
Valves	up to 3
Total flow	14.8 gpm 56.0 lpm
	17.2 gpm (optional) 65.1 lpm

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E
	540/540E/1000
Engine RPM	540@2097
	540E@1700
	1000@2074
Front PTO Type	1000

Dimensions & Tires
Wheelbase	88.6 inches 225 cm
Weight	8,157 lbs 3700 kg
Front tire	13.6R24
Rear tire	16.9R34
Full dimensions and tires ...

References
5 Series published in 2009, by John Deere
5 Series Speciality tractors published in 2009, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045HL284
Configuration	turbocharged diesel, 4-cylinder 8-valve, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier III/Stage IIIa
Power	80 hp 59.7 kW
Fuel system	high-pressure common rail
Rated RPM	2300
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Oil capacity	20.6 qts 19.5 L
Oil change	500 h
Coolant capacity	29.6 qts 28.0 L
Coolant change	1500 h

John Deere 5080R Engine

Transmission

Transmission options
16-speed four-speed power shuft
32-speed creeper

Transmission — PowrQuad Plus

Transmission	PowrQuad Plus
Type	four-speed power shuft
Gears	16 forward and reverse
Clutch	electro-hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever.
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

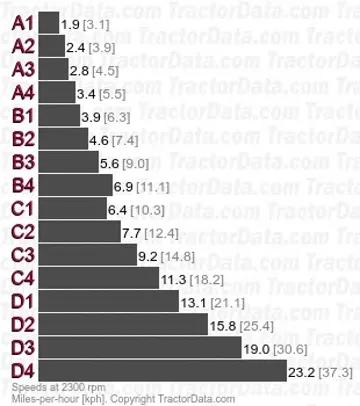

Transmission — AutoQuad Plus

Transmission	AutoQuad Plus
Type	four-speed power shuft
Gears	16 forward and reverse
Clutch	electro-hydraulic wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with electric de-clutch button and reverser lever. Programmable automatic gear shifting.
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

Transmission — PowerQuad Plus with underdrive

Transmission	PowerQuad Plus with underdrive
Type	creeper
Gears	32 forward and reverse
Clutch	electro-hydraulic wet disc
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

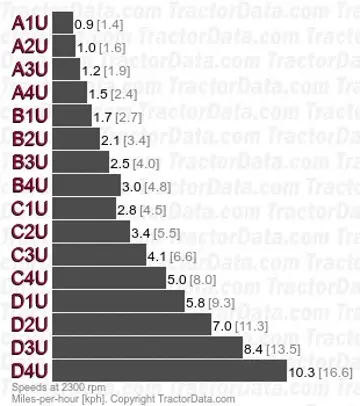

Transmission — AutoQuad Plus with underdrive

Transmission	AutoQuad Plus with underdrive
Type	creeper
Gears	32 forward and reverse
Clutch	electro-hydraulic wet disc
With 420/85R30 rear tires. Reverse speeds are 5% faster than forward speeds.

Dimensions

John Deere 5080R Tires
Ag front	13.6R24
Ag rear	16.9R34

Dimensions
Wheelbase	88.6 inches 225 cm
Length	155.5 inches 394 cm
Width	85.6 inches 217 cm
Height (cab)	102.2 inches 259 cm
	100 inches (low-profile) 254 cm
Shipping weight	8,157 lbs 3700 kg
Max weight	14,550 lbs 6599 kg
Ground clearance	13.4 inches 34 cm

Attachments

Attachment overview
John Deere 533 loader
John Deere 583 loader
John Deere 633 loader
