John Deere 5510

The John Deere 5510 is a tractor produced by John Deere. It is equipped with a 274.6 ci 4.5 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 24 forward and reverse. Operating weight: 7050 lbs 3197 kg.

Overview

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

Production
Distributor	John Deere
Manufacturer	Carraro
Utility tractor

John Deere 5510 Engine
John Deere 4.5L 4-cyl
Engine details ...

John Deere 5510 Power
Engine (net)	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
Wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab standard.

Capacity
Fuel	21.1 gal 79.9 L
2WD Hydraulic system	9.5 gal 36.0 L
4WD 12-Speed Hydraulic system	10 gal 37.9 L
4WD 24-Speed Hydraulic system	11.4 gal 43.1 L

Hydraulics
Type	open center
2WD Capacity	9.5 gal 36.0 L
4WD 12-Speed Capacity	10 gal 37.9 L
4WD 24-Speed Capacity	11.4 gal 43.1 L
Pump flow	12.4 gpm 46.9 lpm
	18.8 gpmOptOptional 71.2 lpm
Steering flow	6.5 gpm 24.6 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	5395 lbs 2447 kg

Power Take-off (PTO)
Rear PTO Type	540/540E
	540/1000
Engine RPM	540@1938
	540E@1648
	1000@1962

Dimensions & Tires
Wheelbase	85.8 inches 217 cm
Weight	7050 lbs 3197 kg
Front tire	7.50-16
2WD Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	40
Cab Charging amps	65
Battery volts	12
Battery AH	100

Engine

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

Engine Detail — 274.6 ci / 4.5 L

Manufacturer	John Deere 4045TAT50
Configuration	turbocharged, 4-cylinder, liquid-cooled
Displacement	274.6 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Rated Power (net)	80 hp 59.7 kW
Compression	17.0:1
Rated RPM	2300
Idle RPM	800-2510
Operating RPM	1500-2300
Torque	231.6 lb-ft 314.0 Nm
Torque RPM	1500
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	8.5 qts 8.0 L
ROPS Coolant capacity	12.6 qts 11.9 L
Cab Coolant capacity	13.7 qts 13.0 L

Transmission

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

Transmission options
12-speed partially synchronized
24-speed partially synchronized
24-speed two-speed power shift

Transmission — 12 forward and reverse partially synchronized

Type	partially synchronized
Gears	12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

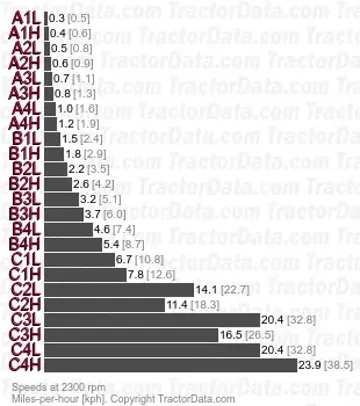

Transmission — 24 forward and reverse partially synchronized

Type	partially synchronized
Gears	24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

Transmission — 24 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and push-button Electro-Hydraulic Hi-Lo. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range ordirection.
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

Dimensions

	2000 - 2002 Utility tractorCarraro built
2000 - 2002
Utility tractor
Carraro built

2000 - 2002
Utility tractor
Carraro built

John Deere 5510 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9R30
4WD Standard tires (ag)	Front: 11.2R24. Rear: 16.9R30

Dimensions
Wheelbase	85.8 inches 217 cm
Length	132 inches 335 cm
Height (cab)	94.5 inches 240 cm
Weight	7050 lbs 3197 kg
