John Deere 5100R

The John Deere 5100R is a tractor produced by John Deere. It is equipped with a 276.4 ci 4.5 L engine. The rated power output is 100 hp 74.6 kW. Transmission: Command8. Operating weight: 9811 lbs 4450 kg.

Overview

	2017 - 5R SeriesUtility tractor
2017 -
5R Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price was $90,121 in 2019

John Deere 5100R Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 5100R Power
Engine	100 hp 74.6 kW
Open center PTO (claimed)	85 hp 63.4 kW
PFC PTO (claimed)	90 hp 67.1 kW
PTO (tested)	103.73 hp 77.4 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic
Power steering
Cab standard with air-conditioning.

Capacity
Fuel	38 gal 143.8 L
Exhaust fluid (DEF)	2.9 gal 11.0 L
Open center Hydraulic system	11.75 gal 44.5 L
PFC Hydraulic system	12.5 gal 47.3 L

Hydraulics
Open center Type	open center
PFC Type	pressure-flow compensated
Open center Capacity	11.75 gal 44.5 L
PFC Capacity	12.5 gal 47.3 L
Pressure	2900 psi 200.0 bar
Open center SCV flow	19.3 gpm 73.1 lpm
PFC SCV flow	26.4 gpm 99.9 lpm
Open center Total flow	25.5 gpm 96.5 lpm
PFC Total flow	39 gpm 147.6 lpm
Open center Steering flow	6.2 gpm 23.5 lpm
PFC Steering flow	8.1 gpm 30.7 lpm

Tractor hitch
Rear Type	II/I
Control	electro-hydraulic draft sensing
Rear lift (at ends)	7158 lbs 3246 kg
	8157 lbsOptOptional 3700 kg
Rear lift (at 24"/610mm)	6979 lbs 3165 kg
	7868 lbsOptOptional 3568 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2100
	540E@1645
	1000@2103

Dimensions & Tires
Wheelbase	88.6 inches 225 cm
Weight	9811 lbs 4450 kg
Front tire	12.4R24
Rear tire	18.4R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Battery CCA	950
Battery volts	12

References
5R Series Tractors published in 2018, by John Deere
Get a load of Our new 5R options published in 2018, by John Deere

Engine

Engine Detail — 276.4 ci / 4.5 L Diesel

Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
John Deere 4045 PowerTech PWL
Displacement	276.4 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier IV
Power	100 hp 74.6 kW
Starter	electric
Starter volts	12
Oil capacity	12.3 qts 11.6 L
Coolant capacity	17 qts 16.1 L

Transmission

Transmission options
16-speed
24-speed
32-speed

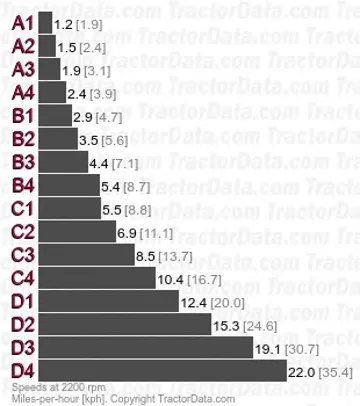

Transmission — CommandQuad

Transmission	CommandQuad
Gears	16 forward and reverse
Clutch	hydraulic wet disc
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward except in D3 and D4.

Transmission — CommandQuad Creeper

Transmission	CommandQuad Creeper
Gears	24 forward and reverse
Clutch	hydraulic wet disc
With 480/70R28 rear tires.

Transmission — Command8

Transmission	Command8
Gears	32 forward and 16 reverse
Clutch	hydraulic wet disc

Dimensions

John Deere 5100R Tires
Standard tires (ag)	Front: 12.4R24. Rear: 18.4R30
Optional tires (ag)	Front: 11.2R28. Rear: 13.6R38
	Front: 380/70R20. Rear: 480/70R28
	Front: 13.6R24. Rear: 16.9R34
	Front: 380/70R24. Rear: 480/70R34
Lawn/turf front	44x18-20
Lawn/turf rear	23.1-26
Industrial front	12.5/80-18
Industrial rear	19.5L-24

Dimensions
Wheelbase	88.6 inches 225 cm
Length	147.8 inches 375 cm
Width	87 inches 220 cm
Height (cab)	106.1 inches 269 cm
Shipping weight	9811 lbs 4450 kg
Max weight	18960 lbs 8600 kg

Tests

Tractor Tests
NTTL 2193: diesel CommandQuad 4WD Open Center
NTTL 2194: diesel CommandQuad 4WD PFC

Nebraska Tractor Test 2193
Diesel CommandQuad 4WD Open Center April 18 - 24, 2018 Link: Nebraska Tractor Test 2193 file
PTO performance
Max power	100.11 hp 74.7 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Power at rated engine speed	88.17 hp 65.7 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Power at rated PTO speed	94.51 hp 70.5 kW
Fuel use	5.4 gal/hour 20.4 l/hour

Nebraska Tractor Test 2194
Diesel CommandQuad 4WD PFC April 16 - 24, 2018 Link: Nebraska Tractor Test 2194 file
PTO performance
Max power	103.73 hp 77.4 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Power at rated engine speed	92.95 hp 69.3 kW
Fuel use	5.5 gal/hour 20.8 l/hour
Power at rated PTO speed	97.92 hp 73.0 kW
Fuel use	5.5 gal/hour 20.8 l/hour
