John Deere 6100D

The John Deere 6100D is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 98.9 hp 73.7 kW. Transmission: John Deere Top Shaft Syncronized (TSS). Drive type: 4x2 2WD. Operating weight: 7275 to 9170 pounds.

Overview

	2008 - 2012 6D SeriesUtility tractor
2008 - 2012
6D Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Saltillo, Mexico
Original price	$45,299 (2011)

John Deere 6100D Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 6100D Power
Engine (gross)	98.9 hp 73.7 kW
PTO (claimed)	82 hp 61.1 kW
Drawbar (tested)	74.66 hp 55.7 kW
PTO (tested)	90.10 hp 67.2 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Differential mechanical wet disc brakes
Folding 2-post ROPS or cab with heat and A/C

Capacity
Fuel	41.7 gal 157.8 L
Hydraulic system	15.3 gal 57.9 L
Front axle	6.9 qts 6.5 L
Front hubs	2.1 qts (each) 2.0 L

Hydraulics
Type	open center
Capacity	15.3 gal 57.9 L
Pressure	2830 psi 195.1 bar
Valves	2 to 3
Pump flow	17.6 gpm 66.6 lpm
Steering flow	6.9 gpm 26.1 lpm

Tractor hitch
Rear Type	II
Control	mechanical lower link
Rear lift (at 24"/610mm)	6,800 lbs 3084 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2100
	1000@2100

Dimensions & Tires
Wheelbase	92.5 inches 234 cm
Weight	7275 to 9170 pounds
Front tire	10.00-16
Rear tire	18.4-34 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70 (ROPS)
	90 (cab)
Battery CCA	925
Battery volts	12
Battery AH	180
Battery Group	31

References
All-New 6D Series Tractors published in 2008, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045T PowerTech
Configuration	turbocharged diesel, 4-cylinder 8-valve, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.20x5.00 inches 107 x 127 mm
Emissions	Tier 1
Rated Power (gross)	98.9 hp 73.7 kW
Fuel system	rotary mechanical injection
Air cleaner	two paper elements
Compression	17:1
Rated RPM	2100
Idle RPM	850-2275
Torque	274 lb-ft 371.5 Nm
Torque RPM	1400
Firing order	1-3-4-2
Starter volts	12
Coolant capacity	17.4 qts 16.5 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	15.85 qts 15.0 L
Oil change	250 h
	500 h (JD TorqGARD oil)

Transmission

Transmission options
9-speed partially synchronized with power shuttle
9-speed partially synchronzied

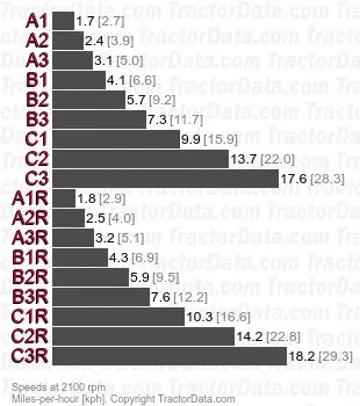

Transmission — John Deere PowrReverser

Transmission	John Deere PowrReverser
Type	partially synchronized with power shuttle
Gears	9 forward and reverse
Clutch	hydraulic wet disc
Oil capacity	61.2 qts 57.9 L
Three gears (1-3) in each of three ranges (A-C) plus left-hand reverser. Forward/reverse powershift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized: the tractor must be stopped and clutch used to shift range.
With 18.4-34 rear tires.

Transmission — John Deere Top Shaft Syncronized (TSS)

Transmission	John Deere Top Shaft Syncronized (TSS)
Type	partially synchronzied
Gears	9 forward and 3 reverse
Clutch	dry disc
Oil capacity	61.2 qts 57.9 L
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.
With 18.4-34 rear tires.

Dimensions

John Deere 6100D Tires
Standard tires (ag)	Front: 10.00-16. Rear: 18.4-34 (2WD)
	Front: 13.6-24. Rear: 18.4-34 (4WD)
Optional tires (ag)	Front: 10.00-16. Rear: 18.4-38 (2WD)
	Front: 10.00-16. Rear: 16.9-38 (2WD)

Dimensions
Wheelbase	92.5 inches 234 cm
2WD Length	168.5 inches 427 cm
4WD Length	166 inches 421 cm
Width	72 inches 182 cm
Height (cab)	107.5 inches 273 cm
Height (exhaust)	106 inches 269 cm
2WD Clearance (front axle)	23.5 inches 59 cm
4WD Clearance (front axle)	18 inches 45 cm
Clearance (rear axle)	26.5 inches 67 cm
Clearance (drawbar)	18 inches 45 cm
Front tread	60.4 to 80.4 inches 153 to 204 cm (2WD)
Front tread	59.7 to 79.4 inches 151 to 201 cm (4WD)
Rear tread	59.5/63.5/67.6/71.3/75.4/79.4 inches 151/161/171/181/191/201 cm

John Deere 6100D Weight
Shipping	7,275 lbs (2WD ROPS) 3299 kg
	7,940 lbs (2WD cab) 3601 kg
	8,510 lbs (4WD ROPS) 3860 kg
	9,170 lbs (4WD cab) 4159 kg
Operating	9,090 lbs (4WD ROPS) 4123 kg
Ballasted	10,860 lbs 4926 kg

Tests

OCED Tractor Test 1974
Diesel 9-speed 4WD May 20 - June 2, 2010 Link: OCED Tractor Test 1974 file
PTO performance
Max power	90.10 hp 67.2 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Power at rated engine speed	87.47 hp 65.2 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Power at rated PTO speed	89.33 hp 66.6 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Drawbar performance
Max power	74.66 hp 55.7 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Max pull	8,962 lbs 4065 kg

Attachments

Attachment overview
John Deere 563 loader
John Deere 673 loader
