John Deere 6320
The John Deere 6320 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW; Diesel (listed): 4 hp / 3.0 kW; Diesel (listed): 100 hp / 74.6 kW. Transmission: John Deere IVT. Drive type: 4x2 2WD. Operating weight: 10,030 lbs 4549 kg.
Engine Power
Diesel (listed): 100 hp / 74.6 kW; Diesel (listed): 4 hp / 3.0 kW; Diesel (listed): 100 hp / 74.6 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
48.9 gal
185.1 L
Transmission
John Deere IVT
Operating Weight
10,030 lbs (4WD cab)
4549 kg
Overview
 | 2002 - 2007
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Mannheim, Baden-Württemberg, Germany | |
Original price | $40,500 (2007) |
Variants | |
|---|---|
6320 | utility chassis |
6320L | low-profile chassis |
John Deere 6320 Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Fuel tank | 48.9 gal
185.1 L |
Engine details ...  | |
John Deere 6320 Power | |
|---|---|
Engine | 100 hp
74.6 kW |
PTO (claimed) | 80 hp
59.7 kW |
Drawbar (tested) | 63.8 hp
47.6 kW |
PTO (tested) | 88.1 hp
65.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (optional) | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Two-post ROPS. ConfortGard Cab optional. | |
Hydraulics | |
|---|---|
Type | pressue flow compensated |
Valves | 4 |
Pump flow | 25 gpm
94.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 4745 lbs
2152 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
540/1000 | |
Engine RPM | 540@2124 |
540@2143 (reversible) | |
1000@2208 | |
Front PTO | optional |
Front PTO Type | 1000 |
Engine RPM | 1000@2185 |
Dimensions & Tires | |
|---|---|
Wheelbase | 94.5 inches
240 cm |
Weight | 10,030 lbs
4549 kg |
Front tire | 10.00-16 |
Rear tire | 18.4-34 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging volts | 14 |
Battery volts | 12 |
References | |
|---|---|
 | |
High-Crop and High-Clearance Tractors published in 2004, by John Deere |
Engine
Engine Detail — 276 ci / 4.5 L Diesel
Manufacturer | John Deere PowerTech 4045HL073 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 276 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Emissions | Tier I |
Power | 100 hp
74.6 kW |
Air cleaner | dry |
Rated RPM | 2300 |
Idle RPM | 875-2510 |
Operating RPM | 1000-2300 |
Torque | 244 lb-ft
330.9 Nm |
Torque RPM | 1500 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Coolant capacity | 14.4 qts
13.6 L |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
Oil capacity | 16.8 qts
15.9 L |
Oil change | 500 h |
Engine Detail — 276 ci / 4.5 L Diesel
Manufacturer | John Deere PowerTech 4045HL270 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 276 ci
4.5 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Emissions | Tier II |
Power | 100 hp
74.6 kW |
Air cleaner | dry |
Rated RPM | 2300 |
Idle RPM | 845-2465 |
Operating RPM | 1000-2300 |
Torque | 305 lb-ft
413.6 Nm |
Torque RPM | 1500 |
Firing order | 1-3-4-2 |
Coolant capacity | 14.4 qts
13.6 L |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
Oil capacity | 16.8 qts
15.9 L |
Oil change | 500 h |
Transmission
Transmission options | |
|---|---|
12-speed fully synchronized | |
16-speed partial power shift | |
24-speed partial power shift | |
infinitely variable transmission |
Transmission — John Deere SyncroPlus
Transmission | John Deere SyncroPlus |
Type | fully synchronized |
Gears | 12 forward and 4 reverse |
Clutch | wet disc |
Oil capacity | 55 qts
52.1 L |
Oil type | JD HyGard |
Three gears (1-3) plus reverse (R) in four ranges (A-D). Directional, gear, and range changes are synchronized and may be shifting while moving by using the clutch. Optional creeper adds an additional nine forward and three reverse speeds for a total of 21-forward and 7-reverse. The SyncroPlus Power Reverser adds a fourth gear in the place of reverse, and includes a left-hand reverser lever, for 16 forward and reverse speeds. | |
With 18.4x30 R1 rear tires. | |
 | |
JD HyGard |
|---|

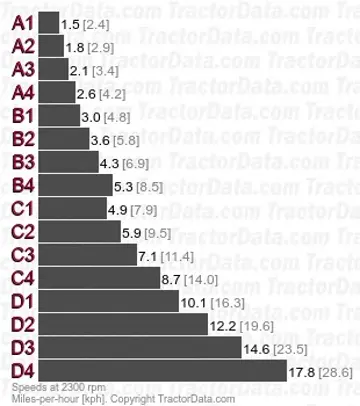

Transmission — John Deere PowrQuad
Transmission | John Deere PowrQuad |
Type | partial power shift |
Gears | 16 forward and reverse |
Clutch | wet disc |
Oil capacity | 51.8 qts
49.0 L |
Oil type | JD HyGard |
Four gears (1-4) in four ranges (A-D) with reverser lever. Clutchless power shift between gears (1-4) and direction changes (power shuttle). Range shifts (A-D) are synchronized, and may be shifted while the tractor is moving by using the clutch. Optional creeper adds an additional twelve speeds for 28 forward and reverse. The PowrQuad uses a gear-shift lever while the PowrQuad Plus (cab tractors only) offers push-button gear shifting. | |
With 18.4x30 R1 rear tires. | |
 | |
JD HyGard |
|---|
Transmission — John Deere PowrQuad Plus
Transmission | John Deere PowrQuad Plus |
Type | partial power shift |
Gears | 24 forward and reverse |
Clutch | wet disc |
Oil capacity | 52.8 qts
50.0 L |
Oil type | JD HyGard |
Four gears (1-4) in six ranges (A-F) with reverser lever. Push-button power shifting between gears (1-4) and power shuttle directional shifting using the reverser lever. Ranges (A-F) may be shifted on the move by using the clutch. | |
With 18.4x30 R1 rear tires. | |
 | |
JD HyGard |
|---|
Transmission — John Deere IVT
Transmission | John Deere IVT |
Type | infinitely variable transmission |
Gears | infinite forward and reverse |
Oil capacity | 63.4 qts
60.0 L |
Oil type | JD Hy-Gard |
Continuously-variable transmission with built-in creeper and left-hand reverser lever. Speed-adjusting dial sets the maximum speed for each band. Setting maximum speed of Band 1 to less than 2 KPH (1.3 MPH) engages creeper mode. Only available on cab tractors. | |
 | |
JD Hy-Gard |
|---|
Dimensions
John Deere 6320 Tires | |
|---|---|
Standard tires (ag) | Front: 10.00-16. Rear: 18.4-34 (2WD) |
Front: 13.6-24. Rear: 18.4-34 (4WD) | |
Dimensions | |
|---|---|
Wheelbase | 94.5 inches
240 cm |
Length | 162.7 inches
413 cm |
Min Width | 61.8 inches
156 cm |
Height | 98.3 inches
249 cm |
Operating weight | 10,030 lbs (4WD cab)
4549 kg |
Clearance (front axle) | 23.1 inches (2WD)
58 cm |
20.5 inches (4WD)
52 cm | |
Front tread | 58.7 to 101.7 inches
149 to 258 cm (2WD) |
Front tread | 59.7 to 79.4 inches
151 to 201 cm (4WD) |
Rear tread | 61.5 to 95.1 inches
156 to 241 cm |
Tests
OCED Tractor Test 2008 | |
|---|---|
Diesel PowrQuad 24-speed 4WD
January 2002 - March 2002,
Link: OCED Tractor Test 2008 file | |
PTO performance | |
Max power | 88.1 hp
65.7 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Power at rated engine speed | 83.5 hp
62.3 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Power at rated PTO speed | 85.7 hp
63.9 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Drawbar performance | |
Max power | 63.8 hp
47.6 kW |
Fuel use | 5.1 gal/hour
19.3 l/hour |
Max pull | 9,450 lbs
4286 kg |
