John Deere 6400

The John Deere 6400 is a tractor produced by John Deere. It is equipped with a 276.4 ci 4.5 L engine. The rated power output is 100 hp 74.6 kW. Transmission: John Deere PowrQuad. Operating weight: 9,040 lbs 4100 kg.

Overview

	1992 - 1997	1992 - 1997

Production
Manufacturer	John Deere
Built in Mannheim, Baden-Württemberg, Germany

Variants
6400SE	economy model

John Deere 6400 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	42.3 gal 160.1 L
Engine details ...

John Deere 6400 Power
Engine	100 hp 74.6 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Cab standard.

Hydraulics
Pressure	2900 psi 200.0 bar
Total flow	15.85 gpm 60.0 lpm

Tractor hitch
Rear Type	II
Rear lift	12070 lbs*Maximum force at top end of lift range 5474 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	540/540E/1000 OptOptional
Engine RPM	540@2017
	540E@1684
	1000@2208
Front PTO	independent
Front PTO Type	1000

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	9,040 lbs 4100 kg
Front tire	13.6R28
Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Battery volts	12
Battery AH	154

References
Flexibla och Produktiva published in 1995, by John Deere

Engine

Engine Detail — 276.4 ci / 4.5 L Diesel

Manufacturer	John Deere 4045 TL
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276.4 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	100 hp 74.6 kW
Rated RPM	2300
Torque	298 lb-ft 404.1 Nm
Torque RPM	1540
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed fully synchronized
15-speed fully synchronized
16-speed partial power shift
20-speed partial power shift

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	225mm wet disc
Three gears (1-3), plus reverse (R), in four ranges (A-D).

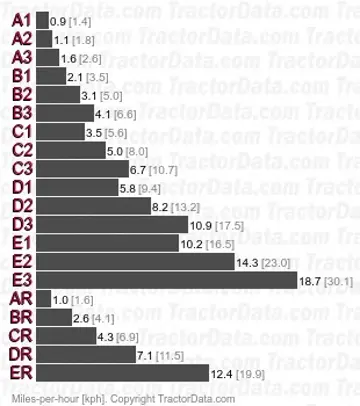

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	15 forward and 5 reverse
Clutch	225mm wet disc
Three gears (1-3), plus reverse (R), in five ranges (A-E). Also available in a 24-speed option with 40 kph maximum speed (depending on sales market).
With 18.4-38 rear tires.

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	225mm wet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle.

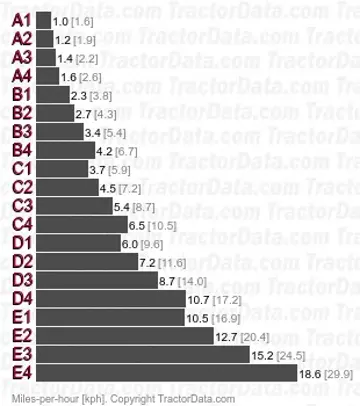

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	20 forward and reverse
Clutch	225mm wet disc
Four power shift gears (1-4) in five synchronized ranges (A-E) with power shuttle. Also available in a 24-speed option with 40 kph maximum speed (depending on sales market).
With 18.4-38 rear tires.

Dimensions

John Deere 6400 Tires
Standard tires (ag)	Front: 13.6R28. Rear: 16.9R38

Dimensions
Wheelbase	94.5 inches 240 cm
Length	165.7 inches 420 cm
Height (cab)	105.9 inches 268 cm
Weight	9,040 lbs 4100 kg
