John Deere 6405

The John Deere 6405 is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 106 hp 79.0 kW. Transmission: John Deere PowrQuad. Operating weight: 9370 to 9855 pounds.

Overview

	1998 - 2005 Utility tractor
1998 - 2005
Utility tractor

Production
Manufacturer	John Deere
Utility tractor

John Deere 6405 Engine
John Deere 4.5L 4-cyl diesel
Engine details ...

John Deere 6405 Power
Engine	106 hp 79.0 kW
PTO (claimed)	90 hp 67.1 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Open operator station. Cab optional.

Capacity
Fuel	40.7 gal 154.0 L
Hydraulic system	14.3 gal 54.1 L
Front axle	7.1 qts 6.7 L
Front hubs	0.8 qts*Each 0.8 L

Hydraulics
Type	constant flow gear pump
Capacity	14.3 gal 54.1 L
Pressure	2900 psi 200.0 bar
Valves	1 to 3
Pump flow	17.44 gpm 66.0 lpm
SCV flow	15.85 gpm 60.0 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	8378 lbs 3800 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	9370 to 9855 pounds
Front tire	14.9-26
Rear tire	23.1-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	52
Cab Charging amps	75
Battery volts	12
Battery AH	100

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.15x5.00 inches 105 x 127 mm
Power	106 hp 79.0 kW
Rated RPM	2300
Torque	328 lb-ft 444.8 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Coolant capacity	16.9 qts 16.0 L
Oil capacity	12.7 qts 12.0 L

Transmission

Transmission options
12-speed fully synchronized
16-speed partial power shift

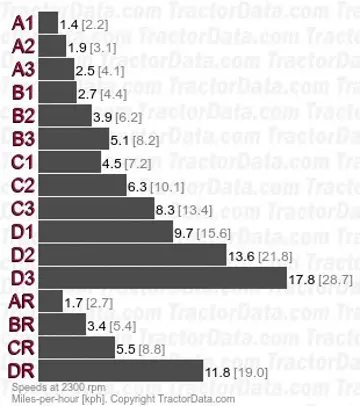

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc PermaClutch II
Oil capacity	57.1 qts 54.0 L
Oil type	JD Hy-Gard
Three synchronized gears (1-3) in four synchronized ranges (A-D).
With 18.4x34 R1 rear tires.

	JD Hy-Gard

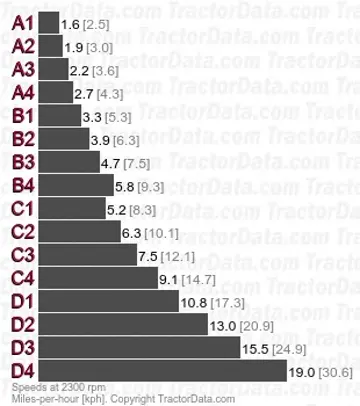

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet disc PermaClutch II
Oil capacity	57.1 qts 54.0 L
Oil type	JD Hy-Gard
Four power shift gears (1-4) in four synchronized ranges (A-D).
With 18.4-34 R1 rear tires. Reverse speeds are 15% faster than forward speeds.

	JD Hy-Gard

Dimensions

John Deere 6405 Tires
Standard tires (ag)	Front: 14.9-26. Rear: 23.1-30
Optional tires (ag)	Front: 14.9-24. Rear: 18.4-34
	Front: 14.9-24. Rear: 23.1-30
	Front: 11.2-28. Rear: 13.6-38
	Front: 14.9-24. Rear: 15.5-38
	Front: 14.9-26. Rear: 18.4-38
	Front: 11.2-28. Rear: 13.6-38

Dimensions
Wheelbase	94.5 inches 240 cm
Length	180 inches 457 cm
Height	106.9 inches 271 cm
Flange rear axle
Front tread	58.7 to 80.3 inches 149 to 203 cm
Rear tread	63.3 to 75.7 inches 160 to 192 cm

John Deere 6405 Weight
ROPS	9370 lbs 4250 kg
Cab	9855 lbs 4470 kg
Max capacity	13,230 lbs 6001 kg
