John Deere 6930

The John Deere 6930 is a tractor produced by John Deere. It is equipped with a 413.7 ci 6.8 L engine. The listed engine power is Diesel (net): 150 hp / 111.9 kW; Diesel (gross): 155 hp / 115.6 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: John Deere PowrQuad Plus Creeper. Operating weight: 12,420 lbs 5633 kg.

Overview

	2006 - 2011 Model year 2006-20082009-2011

Production
Manufacturer	John Deere

John Deere 6930 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 6930 Power
Engine (gross)	155 hp 115.6 kW
Engine (net)	150 hp 111.9 kW
Engine (max)	163 hp 121.5 kW
PTO (claimed)	135 hp 100.7 kW

Mechanical
Four-wheel drive
Differential lock	rear electro-hydraulic wet disc
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	66 gal 249.8 L
Optional Fuel	85.9 gal 325.1 L
Hydraulic system	13.2 gal 50.0 L

Hydraulics
Type	constant flow
	pressure and flow compensated optional (PFC)
Capacity	13.2 gal 50.0 L
Pressure	2,901 psi 200.0 bar
Pump flow	21.4 gpm 81.0 lpm
PFC Pump flow	29.1 gpm 110.1 lpm

Tractor hitch
Rear Type	II/IIIN
Control	load and depth control with electronic lower-link sensing
Rear lift	16,730 lbs 7588 kg
	18,880 lbs (optional) 8563 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E/1000
Engine RPM	540@1995
	540E@1743
	1000@1995
Front PTO Type	1000
Engine RPM	1000@1995

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	12,420 lbs 5633 kg
Front tire	16.9R28
Rear tire	20.8R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Optional Charging amps	154
Battery volts	12

Engine

Engine Detail — 413.7 ci / 6.8 L Diesel

Manufacturer	John Deere 6068HL281
Configuration	turbocharged diesel, 6-cylinder 12-valve, liquid-cooled
Displacement	413.7 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier III
Rated Power (net)	150 hp 111.9 kW
Rated Power (gross)	155 hp 115.6 kW
Maximum Power (net)	158 hp 117.8 kW
Maximum Power (gross)	163 hp 121.5 kW
Fuel system	high-pressure common rail injection
Cooling system	viscous fan
Air cleaner	dry element
Rated RPM	2100
Idle RPM	850-2250
Operating RPM	1500-2100
Torque	513 lb-ft 695.6 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	20.6 qts 19.5 L
Oil change	500 h
Coolant capacity	29.6 qts 28.0 L
Coolant change	3000 h
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
20-speed partial power shift
32-speed partial power shift

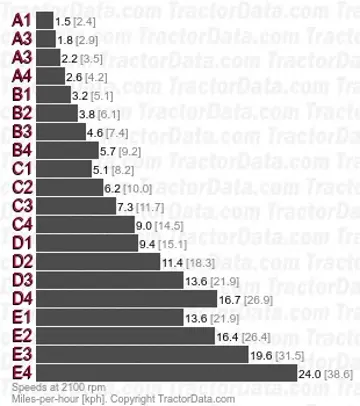

Transmission — John Deere PowrQuad Plus

Transmission	John Deere PowrQuad Plus
Type	partial power shift
Gears	20 forward and reverse
Clutch	dual 225mm wet disc PermaClutch
Oil capacity	52.8 qts 50.0 L
Four gears (1-4) in five ranges (A-E) with left-hand shuttle lever. Push-button power shift between gears. Clutch must be used to shift between ranges. Reverse speeds are about 4% faster than corresponding forward speeds.

Transmission — John Deere PowrQuad Plus Creeper

Transmission	John Deere PowrQuad Plus Creeper
Type	partial power shift
Gears	32 forward and reverse
Clutch	dual 225mm wet disc PermaClutch
Oil capacity	52.8 qts 50.0 L
Optional creeper adds an additional twelve speeds to the PowrQuad transmission in ranges A-C.

Dimensions

John Deere 6930 Tires
Standard tires (ag)	Front: 16.9R28. Rear: 20.8R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	187.3 inches 475 cm
Width	93.8 inches 238 cm
Height	115.1 inches 292 cm
Front tread	63.9 to 83.3 inches 162 to 211 cm
Rear tread	63.9 to 79.6 inches 162 to 202 cm

John Deere 6930 Weight
Shipping	12,420 lbs 5633 kg
Max capacity	23,150 lbs 10500 kg
Max rear axle	16,535 lbs 7500 kg
