John Deere 6525

The John Deere 6525 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The listed engine power is Diesel (net): 115 hp / 85.8 kW; Diesel (gross): 120 hp / 89.5 kW. Transmission: John Deere PowrReverser. Drive type: 4x2 2WD. Operating weight: 9,612 lbs 4360 kg.

Overview

	6025 SeriesUtility tractor
6025 Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6525 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	54.7 gal 207.0 L
Engine details ...

John Deere 6525 Power
Engine (gross)	120 hp 89.5 kW
Engine (net)	115 hp 85.8 kW
Engine (max)	125 hp 93.2 kW
PTO (claimed)	102 hp 76.1 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Wet disc brakes
Two-post foldable ROPS.

Hydraulics
Type	open center gear pump
Pressure	2538 psi 175.0 bar
Pump flow	14.27 gpm 54.0 lpm

Tractor hitch
Rear Type	2/1
Control	load and depth control with mechanical top-link sensing
Rear lift	10,030 lbs 4549 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical-hydraulic wet disc
Rear PTO Type	540/1000
Engine RPM	540@2143
	1000@2208

Dimensions & Tires
2WD Wheelbase	106.3 inches 270 cm
4WD Wheelbase	104.3 inches 264 cm
Weight	9,612 lbs 4360 kg
Front tire	7.50R18
Rear tire	18.4R34 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	110

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Stage III
Rated Power (net)	115 hp 85.8 kW
Rated Power (gross)	120 hp 89.5 kW
Maximum Power (net)	121 hp 90.2 kW
Maximum Power (gross)	125 hp 93.2 kW
Fuel system	electronic fuel injection
Cooling system	viscous fan
Rated RPM	2300
Idle RPM	850-2460
Operating RPM	1600-2300
Torque	358 lb-ft 485.4 Nm
Torque RPM	1600
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12
Oil capacity	16.9 qts 16.0 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
12-speed synchronized
16-speed power shuttle

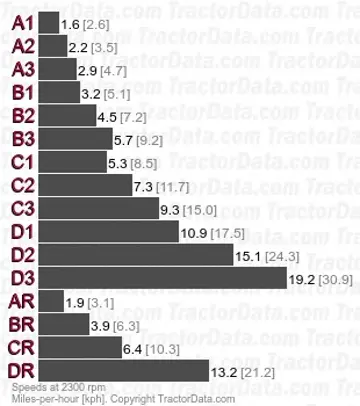

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	synchronized
Gears	12 forward and 4 reverse
Clutch	wet 225mm disc PermaClutch II
Oil capacity	58.1 qts 55.0 L
Three gears (1-3) plus reverse (R) in four ranges (A-D).

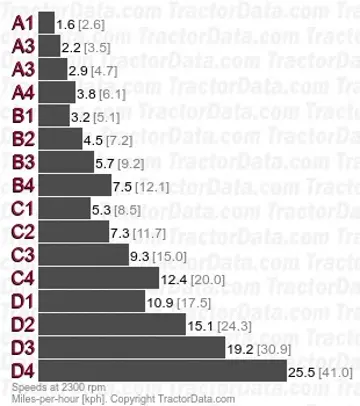

Transmission — John Deere PowrReverser

Transmission	John Deere PowrReverser
Type	power shuttle
Gears	16 forward and reverse
Clutch	wet 225mm disc PermaClutch II
Oil capacity	58.1 qts 55.0 L
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. 30 KPH and 40 KPH maximum speed options available.

Dimensions

John Deere 6525 Tires
Standard tires (ag)	Front: 7.50R18. Rear: 18.4R34 (2WD)
	Front: 14.9R24. Rear: 18.4R34 (4WD)

Dimensions
2WD Wheelbase	106.3 inches 270 cm
4WD Wheelbase	104.3 inches 264 cm
Shipping weight	9,612 lbs 4360 kg
Max weight	16,530 lbs 7498 kg
Clearance (rear axle)	63.9,67.9,69.1,70.4,71.6,75.9,77.1,78.4,79.6 inches 162 cm
Flange rear axle
