John Deere 6930 Premium

2006 - 2011

Model year 2006-20082009-2011

Manufacturer

John Deere

John Deere 6.8L 6-cyl diesel

Engine (gross)

155 hp 115.6 kW

Engine (net)

150 hp 111.9 kW

Engine (max)

167 hp 124.5 kW

PTO (claimed)

136 hp 101.4 kW

Boost PTO (claimed)

158 hp 117.8 kW

Four-wheel drive

Hydraulic wet disc brakes

Cab standard with air-conditioning.

Fuel

66 gal 249.8 L

Optional Fuel

85.9 gal 325.1 L

Hydraulic system

14.8 gal 56.0 L

IVT Hydraulic system

17.4 gal 65.9 L

Type

load-sensing pressure-flow compensating (PFC)

Capacity

14.8 gal 56.0 L

IVT Capacity

17.4 gal 65.9 L

Pressure

2,901 psi 200.0 bar

Valves

4 (Max)

Pump flow

15.9 gpm 60.2 lpm

Optional Pump flow

29.1 gpm 110.1 lpm

Rear Type

IIIN

Control

15.9

Optional Control

29.1

Rear lift (at ends)

18,880 lbs 8563 kg

Rear PTO

independent

Clutch

electro-hydraulic wet disc

Rear PTO Type

540/540E/1000

Engine RPM

540@1995

540E@1743

1000@1995

Front PTO Type

1000

Engine RPM

1000@1995

Wheelbase

104.3 inches 264 cm

Weight

12,960 lbs 5878 kg

Front tire

16.9R28

Rear tire

20.8R38

Ground

negative

Charging system

alternator

Battery volts

12

Manufacturer

John Deere 6068HL480

Configuration

turbocharged diesel, 6-cylinder 24-valve, liquid-cooled

Displacement

413.7 ci 6.8 L

Bore/Stroke

4.19x5.00 inches 106 x 127 mm

Emissions

Tier III

Emission control

exhaust gas recirculation (EGR)

Rated Power (net)

150 hp 111.9 kW

Rated Power (gross)

155 hp 115.6 kW

Maximum Power (net)

161 hp 120.1 kW

Maximum Power (gross)

167 hp 124.5 kW

Fuel system

high-pressure common rail injection

Cooling system

viscous fan

Air cleaner

dry element

Rated RPM

2100

Idle RPM

845-2255

Operating RPM

1300-2100

Torque

507 lb-ft 687.5 Nm

Torque RPM

1400

Firing order

1-5-3-6-2-4

Starter volts

12

Starter power

4 hp 3.0 kW

Oil capacity

20.6 qts 19.5 L

Oil change

500 h

Coolant capacity

29.6 qts 28.0 L

Coolant change

1500 h

Intake valve clearance

0.014 inches 0.356 mm

Exhaust valve clearance

0.018 inches 0.457 mm

20-speed partial power shift

32-speed partial power shift

infinitely variable transmission (IVT)

Transmission

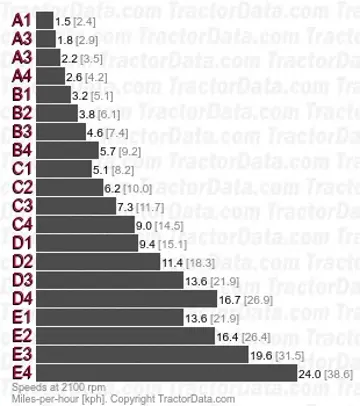

John Deere PowrQuad Plus

Type

partial power shift

Gears

20 forward and reverse

Clutch

PermaClutch II wet disc

Oil capacity

59.2 qts 56.0 L

Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.

Transmission

John Deere AutoQuad Plus

Type

partial power shift

Gears

20 forward and reverse

Clutch

PermaClutch II wet disc

Oil capacity

59.2 qts 56.0 L

AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission.

Transmission

John Deere Creeper

Type

partial power shift

Gears

32 forward and reverse

Clutch

PermaClutch II wet disc

Oil capacity

59.2 qts 56.0 L

The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission.

Transmission

John Deere AutoPowr

Type

infinitely variable transmission (IVT)

Gears

infinite forward and reverse

Oil capacity

69.7 qts 66.0 L

The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds.

Standard tires (ag)

Front: 16.9R28. Rear: 20.8R38

Wheelbase

104.3 inches 264 cm

Length

187.3 inches 475 cm

Width

93.8 inches 238 cm

Height

114.4 inches 290 cm

Front tread

63.9 to 83.3 inches 162 to 211 cm

Rear tread

63.9 to 79.6 inches 162 to 202 cm

Shipping

12,960 lbs 5878 kg

Max capacity

24,250 lbs 10999 kg

Max rear axle

17,185 lbs 7795 kg
