John Deere 7330
The John Deere 7330 is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The listed engine power is Diesel (gross): 150 hp / 111.9 kW. Transmission: John Deere PowrQuad Creeper. Drive type: 4x2 2WD. Operating weight: 10800 to 12965 pounds.
Engine Power
Diesel (gross): 150 hp / 111.9 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
66 gal
249.8 L
Transmission
John Deere PowrQuad Creeper
Operating Weight
10800 to 12965 pounds
Overview
 | 2007 - 2011
7030 Small-Frame SeriesRow-Crop tractor
7030 Small-Frame Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Factories | Waterloo, Iowa, USA |
Mannheim, Baden-Württemberg, Germany | |
Original price | $77,688 (2011) |
In the spring of 2011, production of the 7330 was moved from Waterloo to Mannheim. The 110-inch rear axle option was dropped at that time. The 7330 was available with ROPS or a basic cab. Upgraded hydraulics and hitch were optional with ROPS but upgraded systems with a cab were only available on the 7330 Premium. | |
Variants | |
|---|---|
7330 | base tractor |
7330 Premium | deluxe tractor |
7330 Premium High-Crop | high-clearance |
John Deere 7330 Engine | |
|---|---|
John Deere 6.8L 6-cyl diesel | |
Engine details ...  |
John Deere 7330 Power | |
|---|---|
Engine (gross) | 150 hp
111.9 kW |
PTO (claimed) | 125 hp
93.2 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (optional) | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Two-post Roll-Gard ROPS. Cab optional. | |
Capacity | |
|---|---|
Fuel | 66 gal
249.8 L |
Hydraulic system | 13.7 gal
51.9 L |
Front axle | 8.8 qts
8.3 L |
Front hubs | 1.6 qts
1.5 L |
Hydraulics | |
|---|---|
Type | constant flow load sensing |
closed-center load sensing (optional ROPS) | |
Capacity | 13.7 gal
51.9 L |
Pressure | 2900 psi
200.0 bar |
Valves | 2 to 4 |
Pump flow | 21.1 gpm
79.9 lpm |
29 gpm (optional ROPS)
109.8 lpm | |
Tractor hitch | |
|---|---|
Rear Type | II |
3N/2 | |
Control | position control |
electronic lower-link (optional ROPS) | |
Rear lift (at 24"/610mm) | 8,800 lbs (II)
3991 kg |
8,200 lbs (3N/2)
3719 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1995 |
1000@1995 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 104.3 inches
264 cm |
Weight | 10800 to 12965 pounds |
Front tire | 10.00-16 |
Rear tire | 18.4R38 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging volts | 14 |
Battery volts | 12 |
References | |
|---|---|
 | |
6030 and 7030 Series Tractors published in 2007, by John Deere |
Engine
Engine Detail — 414.4 ci / 6.8 L Diesel
Manufacturer | John Deere 6068HRW74 |
Configuration | turbocharged intercooled diesel, 6-cylinder 12-valve, liquid-cooled |
Displacement | 414.4 ci
6.8 L |
Bore/Stroke | 4.19x5.00 inches
106 x 127 mm |
Rated Power (gross) | 150 hp
111.9 kW |
Air cleaner | dual paper elements |
Compression | 17.0:1 |
Rated RPM | 2100 |
Idle RPM | 850-2250 |
Operating RPM | 1500-2100 |
Torque | 507 lb-ft
687.5 Nm |
Torque RPM | 1500 |
Firing order | 1-5-3-6-2-4 |
Oil capacity | 20.8 qts
19.7 L |
Coolant capacity | 32.8 qts (ROPS)
31.0 L |
35.6 qts (cab)
33.7 L | |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |
Transmission
Transmission options | |
|---|---|
16-speed partial power shift | |
20-speed partial power shift | |
32-speed partial power shift |

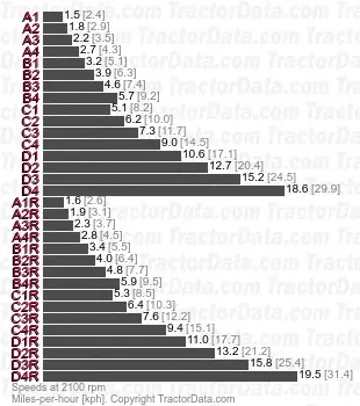

Transmission — John Deere PowrQuad
Transmission | John Deere PowrQuad |
Type | partial power shift |
Gears | 16 forward and reverse |
Oil capacity | 54.8 qts
51.9 L |
Four ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. | |
With 18.4R38 rear tires. | |
 | |

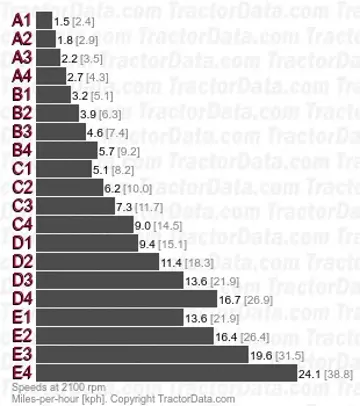

Transmission — John Deere PowrQuad
Transmission | John Deere PowrQuad |
Type | partial power shift |
Gears | 20 forward and reverse |
Oil capacity | 54.8 qts
51.9 L |
Five ranges, each with four gears. Operated via range shift lever and gear shift lever plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. | |
With 18.4R38 rear tires. | |
 | |
Transmission — John Deere PowrQuad Plus
Transmission | John Deere PowrQuad Plus |
Type | partial power shift |
Gears | 20 forward and reverse |
Oil capacity | 54.8 qts
51.9 L |
PowrQuad Plus is standard on tractors with cab, replacing the separate gear shift lever with a push-button gear shift on the range lever. Available in 16- or 20-speed. Clutch must be used to change range, cluthless push-button power shift for speeds. | |
With 18.4R38 rear tires. Sixteen-speed transmission has same ground speeds but without E Range. | |
 | |

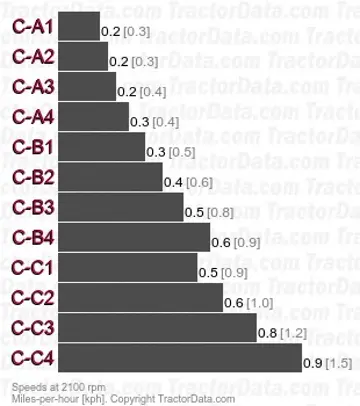

Transmission — John Deere PowrQuad Creeper
Transmission | John Deere PowrQuad Creeper |
Type | partial power shift |
Gears | 32 forward and reverse |
Oil capacity | 56 qts
53.0 L |
Optional creeper could be added to both the 16- and 20-speed PowrQuad. Creeper is engaged with a separate shift lever that selects between creeper (turtle) and the standard transmission ratio (rabbit). Tractor must be stopped, clutch used, and engine speed below 1000 RPMs to shift in or out of the creeper. | |
With 18.4R38 rear tires. | |
 | |
Dimensions
John Deere 7330 Tires | |
|---|---|
Standard tires (ag) | Front: 10.00-16. Rear: 18.4R38 (2WD) |
Front: 14.9R28. Rear: 18.4R38 (4WD) | |
Dimensions | |
|---|---|
Wheelbase | 104.3 inches
264 cm |
Length | 187.3 inches
475 cm |
Width | 65.5 inches (flange axle)
166 cm |
Clearance (front axle) | 21.6 inches (2WD)
54 cm |
23 inches (4WD)
58 cm | |
Clearance (rear axle) | 28.2 inches
71 cm |
Clearance (drawbar) | 19 inches
48 cm |
Rear axle | 60 inch length
1524 mm (flange) |
Rear axle | 3.385 by 96 inches
85 by 2438 mm (optional bar) |
Rear axle | 3.385 by 110.5 inches
85 by 2806 mm (optional long bar) |
Front tread | 77 to 101 inches
195 to 256 cm (2WD) |
Rear tread | 60 to 100.3 inches
152 to 254 cm (flange cast) |
Rear tread | 63.1 to 108.3 inches
160 to 275 cm (flange steel) |
Rear tread | 60 to 88 inches
152 to 223 cm (bar) |
John Deere 7330 Weight | |
|---|---|
Shipping | 10,800 lbs (2WD)
4898 kg |
12,965 lbs (4WD)
5880 kg | |
Max capacity | 23,150 lbs
10500 kg |
Max Drawbar | 4,960 lbs
2249 kg |
Max front axle | 4,520 lbs (2WD)
2050 kg |
10,580 lbs (4WD)
4799 kg | |
11,025 lbs (2WD with loader)
5000 kg | |
15,650 lbs (4WD with loader)
7098 kg | |
Max rear axle | 16,535 lbs
7500 kg |
John Deere 7330 Height | |
|---|---|
ROPS | 115.2 inches
292 cm |
90.8 inches (folded)
230 cm | |
Cab | 114.4 inches
290 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 7330 based on its 150 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 7330.
Estimated Continuous Field Runtime: 8.5 hrs
Approximately 8.5 hours of continuous field operation at ~75% rated power on a full tank (66 gal / 249.8 L).
Estimated 75% Load Fuel Burn~7.8 gal/hr (29.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 7330 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 7330.
Converted Equivalents:
Horsepower (HP)150 hp
Kilowatts (kW)111.9 kW
Metric Horsepower (PS / CV)152.1 PS
