John Deere 8200

The John Deere 8200 is a tractor produced by John Deere. It is equipped with a 466 ci 7.6 L engine. The rated power output is 181.71 hp 135.5 kW. Transmission: John Deere PowerShift. Operating weight: 16457 to 18928 pounds.

Overview

	1995 - 1999 Model year 1995-19961997-1999 8000/8000T SeriesRow-Crop tractor
1995 - 1999
Model year 1995-19961997-1999
8000/8000T Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

John Deere 8200 Engine
John Deere 7.6L 6-cyl diesel
Engine details ...

John Deere 8200 Transmission
16-speed full power shift
Transmission details ...

John Deere 8200 Power
PTO (claimed)	180 hp 134.2 kW
Drawbar (tested)	159.63 hp 119.0 kW
PTO (tested)	202.33 hp 150.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic
Power steering
Differential hydraulic wet disc brakes
CommandView Cab standard. Row-Trak guidance optional.

Capacity
Fuel	135 gal 511.0 L
Hydraulic system	37 gal 140.0 L
Front hubs	3.2 qts (each) 3.0 L
Front diff.	11.5 qts 10.9 L

Hydraulics
Type	closed center pressure-flow compensated (PFC)
Capacity	37 gal 140.0 L
Pressure	2900 psi 200.0 bar
Valves	3 to 5
SCV flow	30 gpm 113.6 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electro-hydraulic draft sensing
Rear lift	10400 lbs 4717 kg
	14165 lbsOptOptional 6425 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	1000 (1.75)
	1000 (1.375)OptOptional
	540 (1.375)OptOptional
Engine RPM	540@1930
	1000@2200

Dimensions & Tires
2WD Wheelbase	122.8 inches 311 cm
4WD Wheelbase	116.1 inches 294 cm
Weight	16457 to 18928 pounds
Front tire	11.00-24
2WD Rear tire	18.4R46
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	140
Batteries	2
Battery CCA	1,850
Battery volts	12

References
New 8000 Series Tractors published in 1995, by John Deere
8000 Series Tractors published in 1996, by John Deere
Operator's Manual 8100, 8200, 8300 and 8400 Tractors (OMAR113872) published in 1994

Engine

Engine Detail — 466 ci / 7.6 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	466 ci 7.6 L
Bore/Stroke	4.5625x4.75 inches 116 x 121 mm
Compression	15.1:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	24.8 qts 23.5 L
Coolant capacity	28.8 qts 27.3 L

Transmission

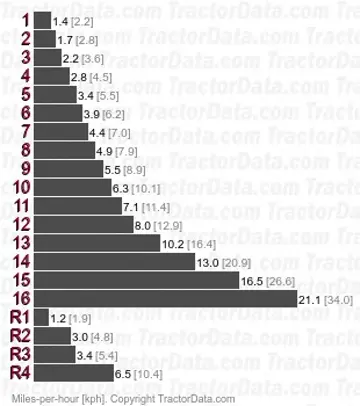

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	16 forward and 4 reverse
Clutch	hydraulic wet disc
Oil capacity	148 qts 140.1 L

Dimensions

John Deere 8200 Tires
2WD Standard tires (ag)	Front: 11.00-24. Rear: 18.4R46
	Front: 14.9R34. Rear: 18.4R46

Dimensions
2WD Wheelbase	122.8 inches 311 cm
4WD Wheelbase	116.1 inches 294 cm
Length	206.5 inches 524 cm
Height	120.2 inches 305 cm
4WD Ground clearance	23.2 inches 58 cm
2WD Ground clearance	31.5 inches 80 cm
Optional short axle rear axle	3.937 by 110.5 inches 99 by 2806 mm
Standard axle rear axle	3.937 by 118.5 inches 99 by 3009 mm
Optional large axle rear axle	4.331 by 118.5 inches 110 by 3009 mm
2WD Front tread	60 to 84 inches 152 to 213 cm
4WD Front tread	60 to 88 inches 152 to 223 cm

John Deere 8200 Weight
2WD Shipping	16457 lbs 7464 kg
4WD Shipping	17898 lbs 8118 kg
Operating	18928 lbs 8585 kg
Ballasted	23670 lbs 10736 kg

Tests

Nebraska Tractor Test 1689
7.6L diesel 16-speed 4WD April 24 - May 12, 1995 Link: Nebraska Tractor Test 1689 file
PTO performance
Max power	202.33 hp 150.9 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Power at rated engine speed	181.71 hp 135.5 kW
Fuel use	10.4 gal/hour 39.4 l/hour
Drawbar performance
Max power	159.63 hp 119.0 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Gear 8 used for power test.
Max pull	23,474 lbs 10647 kg
Gear 3 used for pull test.
