John Deere 6R 195

The John Deere 6R 195 is a tractor produced by John Deere. It is equipped with a 415 ci 6.8 L engine. The listed engine power is Diesel (gross): 191.8 hp / 143.0 kW. Transmission: John Deere Direct Drive. Operating weight: 18519 lbs 8400 kg.

Engine Power
Diesel (gross): 191.8 hp / 143.0 kW
Transmission
John Deere Direct Drive
Operating Weight
18519 lbs 8400 kg

Overview

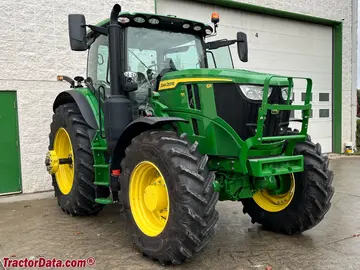

John Deere 6R 195 tractor photo
2022 - 6R SeriesUtility tractor
2022 -
6R Series
Utility tractor
Production
Manufacturer
John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 6R 195 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...
John Deere 6R 195 Power
Engine (gross)
191.8 hp 143.0 kW
Engine (max)
211.9 hp 158.0 kW
PTO (claimed)
156 hp 116.3 kW
Mechanical
Four-wheel drive
Power steering
Cab standard with air-conditioning.
Hydraulics
Type
closed-center PFC
Pump flow
41 gpm 155.2 lpm
Tractor hitch
Rear Type
III/IIIN
Rear lift
9480 lbs 4300 kg
10690 lbsOptOptional 4848 kg
Front Hitch
IIIN
Front lift
7275 lbs 3299 kg
Dimensions & Tires
Wheelbase
110.2 inches 279 cm
Weight
18519 lbs 8400 kg
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
6R 195 references literature
6R Utility Tractors published in 2021, by John Deere

Engine

Engine Detail — 415 ci / 6.8 L Diesel

Manufacturer
John Deere PowerTech PVS
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
415 ci 6.8 L
Bore/Stroke
4.15x5.00 inches 105 x 127 mm
Emissions
Tier IV
Rated Power (gross)
191.8 hp 143.0 kW
Maximum Power (gross)
211.9 hp 158.0 kW
Torque
672 lb-ft 911.2 Nm
Torque RPM
1600
Starter
electric
Starter volts
12

Transmission

Transmission options
continuously-variable transmission
24-speed 4-speed power shift
24-speed 8-speed power shift

Transmission — John Deere IVT

Transmission
John Deere IVT
Type
continuously-variable transmission
Gears
infinite forward and reverse

Transmission — John Deere AutoQuad Plus Eco

Transmission
John Deere AutoQuad Plus Eco
Type
4-speed power shift
Gears
24 forward and reverse

Transmission — John Deere Direct Drive

Transmission
John Deere Direct Drive
Type
8-speed power shift
Gears
24 forward and reverse

Dimensions

John Deere 6R 195 Tires
Dimensions
Wheelbase
110.2 inches 279 cm
Weight
18519 lbs 8400 kg

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere 6R 195 based on its 191.8 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 6R 195.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere 6R 195 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 6R 195.

Converted Equivalents:

Horsepower (HP)191.8 hp
Kilowatts (kW)143 kW
Metric Horsepower (PS / CV)194.5 PS
