John Deere 8450

1982 - 1988

8050 Series

Four-wheel Drive (4WD) tractor

Manufacturer

John Deere

Four-wheel Drive (4WD) tractor

Built in Waterloo, Iowa, USA

Original price was $78,707 in 1983

The John Deere model 8450 was introduced, along with the 8650 and 8850, in 1982 as replacements for the 40-series four-wheel drive tractors. Efficiency was the focus of Deere's advertising for these tractor models. Deere promoted the ability of the 8450 to perform planting and cultivation work, the duals could be set to navigate 30-inch crop rows. The 8450 also had a full-power PTO available, along with Load-and-Depth control on the three-point hitch.

John Deere 7.6L 6-cyl diesel

16-speed partial power shift

Engine

225 hp 167.8 kW

PTO (claimed)

185 hp 138.0 kW

Drawbar (tested)

173.52 hp 129.4 kW

PTO (tested)

186.98 hp 139.4 kW

Four-wheel drive

Final drives

inboard planetary

Differential lock

electro-hydraulic front and rear

Articulated power steering

Power wet disc brakes

Sound-Gard cab with air-conditioning

Fuel

185 gal 700.2 L

Hydraulic system

37.5 gal 141.9 L

Type

closed center constant-pressure

Capacity

37.5 gal 141.9 L

Valves

2 to 4

Pump flow

32 gpm 121.1 lpm

Rear Type

3/3N

Control

lower-link draft sensing

Rear lift

9,262 lbs 4201 kg

Rear PTO

independent OptOptional

Clutch

hydraulic wet disc

Rear PTO Type

1000 (1.75)

Wheelbase

125 inches 317 cm

Weight

27560 to 29150 pounds

Front tire

18.4-34

Rear tire

18.4-34

Ground

negative

Charging system

alternator

Charging amps

110

Batteries

2

Battery CCA

800

Battery volts

6

Loaders, Spreaders and Blades published in 1984, by John Deere

4-Wheel-Drive Tractors published in 1981, by John Deere

4-Wheel-Drive Tractors published in 1983, by John Deere

4-Wheel-Drive Tractors published in 1986, by John Deere

8450, 8650, 8850 Competition published in 1982, by John Deere

Agricultural Price List published in 1983, by John Deere

Manufacturer

John Deere

Configuration

intercooled turbocharged diesel, 6-cylinder, liquid-cooled

Displacement

466 ci 7.6 L

Bore/Stroke

4.5625x4.75 inches 116 x 121 mm

Power

225 hp 167.8 kW

Compression

15.5:1

Rated RPM

2100

Firing order

1-5-3-6-2-4

Starter volts

12

Oil capacity

20 qts 18.9 L

Coolant capacity

42 qts 39.7 L

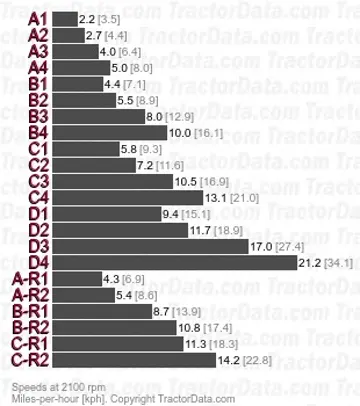

Transmission

Quad-Range

Type

partial power shift

Gears

16 forward and 6 reverse

Clutch

Perma-Clutch hydraulic wet discs

Oil capacity

150 qts 142.0 L

Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.

18.4-38 tires

Ag front

18.4-34

Ag rear

18.4-34

Ag front

24.5-32

24.5R32

30.5-32

30.5R32

20.8-34

23.1-34

20.8-38

Ag rear

24.5-32

24.5R32

30.5-32

30.5R32

20.8-34

23.1-34

20.8-38

Wheelbase

125 inches 317 cm

Length

223.5 inches 567 cm

Shipping weight

27560 lbs 12501 kg

Operating weight

29150 lbs 13222 kg

Front axle

Standard axle: 3.938 by 96 inches 100 by 2438 mm

Front axle

Long axle: 3.937 by 118.6 inches 99 by 3012 mm

Standard axle rear axle

3.938 by 96 inches 100 by 2438 mm

Long axle rear axle

3.937 by 118.6 inches 99 by 3012 mm

Diesel Quad-Range 4WD May 12 - 27, 1982 Link: Nebraska Tractor Test 1436 file

PTO performance

Power at rated engine speed

186.98 hp 139.4 kW

Fuel use

11.9 gal/hour 45.0 l/hour

Drawbar performance

Max power

173.52 hp 129.4 kW

Fuel use

12.0 gal/hour 45.4 l/hour

Max pull

26,567 lbs 12050 kg
