John Deere 102

The John Deere 102 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: Dana 4360. Operating weight: 442 lbs 200 kg.

Overview

	2006 Lawn tractor
2006
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $1,399 in 2006

John Deere 102 Engine
17HP Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

John Deere 102 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	442 lbs 200 kg
Front tire	15x6-6
Rear tire	20x8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	Regulated circuit
Charging amps	9
Battery volts	12
Battery Group	U1

References
Operator's Manual 100 Series (OMGX21821) published in 2006

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	501 cc 30.6 ci
Bore/Stroke	3.57x3.06 inches 91 x 78 mm
Power	17 hp 12.7 kW
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.012 inches 0.305 mm
Intake valve clearance	0.004 inches 0.102 mm
Exhaust valve clearance	0.006 inches 0.152 mm
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — Dana 4360

Transmission	Dana 4360
Type	gear
Gears	5 forward and 1 reverse
Operated with combination clutch/brake pedal and gear shift lever. Tractor must be stopped before changing direction between forward and reverse.

Dimensions

John Deere 102 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x8-8

Dimensions
Wheelbase	48.9 inches 124 cm
Length	68.75 inches 174 cm
Width	51.75 inches (with mower) 131 cm
Height	42.5 inches 107 cm
Weight	442 lbs 200 kg

Attachments

42" Mower deck
Type	mid-mount John Deere
	manual lift
Cutting width	42 inches 106 cm

Photos

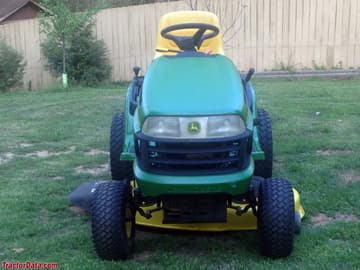

John Deere 102

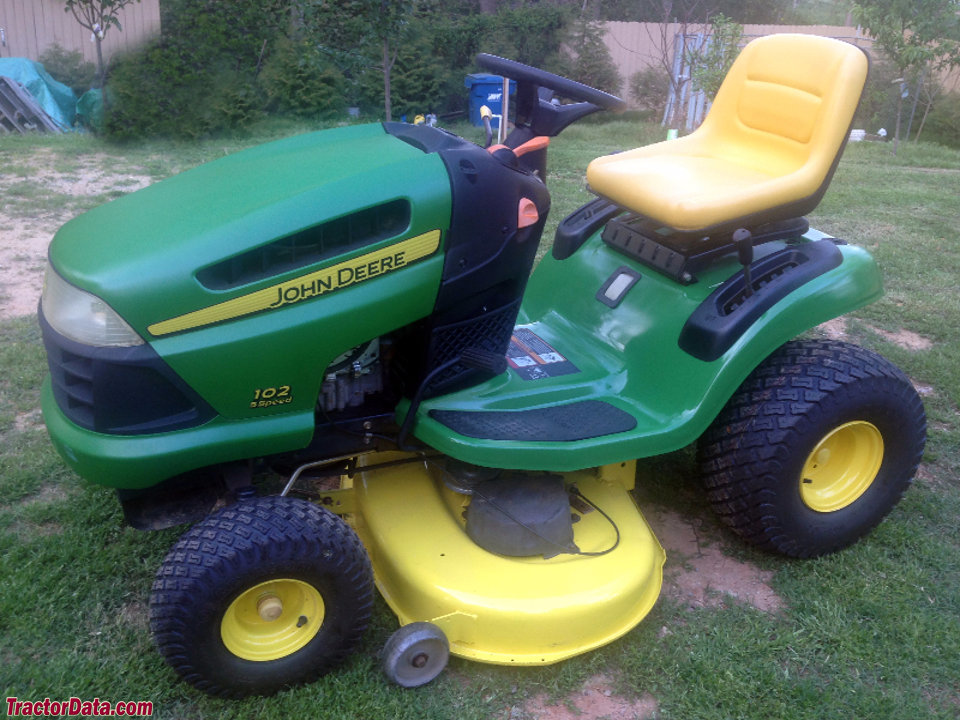

John Deere 102

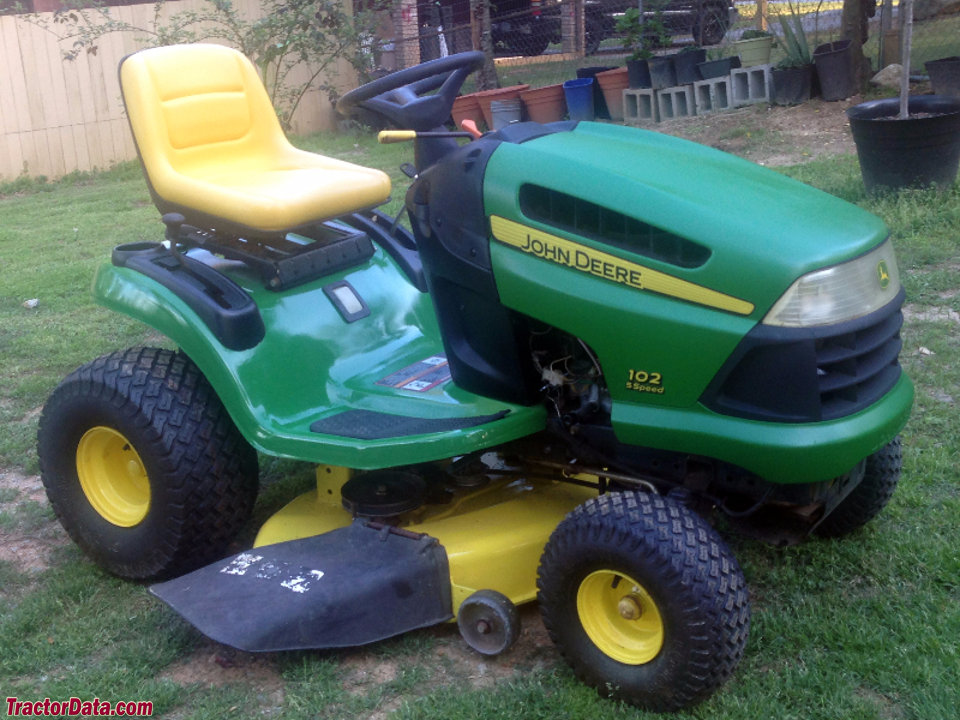

John Deere 102
