John Deere 135
The John Deere 135 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 22 hp / 16.4 kW. Transmission: Tuff Torq T40. Operating weight: 470 lbs 213 kg.
Engine Power
Gasoline (listed): 22 hp / 16.4 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
Tuff Torq T40
Operating Weight
470 lbs
213 kg
Overview
 | 2006
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $1,999 in 2006 | |
John Deere 135 Engine | |
|---|---|
22HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
John Deere 135 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Weight | 470 lbs
213 kg |
Front tire | 15x6-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | Regulated circuit |
Charging amps | 16 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Operator's Manual 100 Series (OMGX21821) published in 2006 |
Engine
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 2.97x2.89 inches
75 x 73 mm |
Power | 22 hp
16.4 kW |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.010 inches
0.254 mm |
Intake valve clearance | 0.005 inches
0.127 mm |
Exhaust valve clearance | 0.005 inches
0.127 mm |
Oil capacity | 1.9 qts
1.8 L |
Transmission
Transmission — Tuff Torq T40
Transmission | Tuff Torq T40 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
John Deere 135 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Length | 69 inches
175 cm |
Width | 52 inches
132 cm |
Height | 44 inches
111 cm |
Weight | 470 lbs
213 kg |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount John Deere |
manual lift | |
Cutting width | 42 inches
106 cm |
Photos

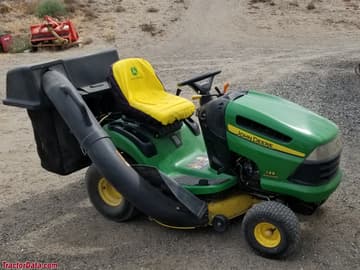

John Deere 135
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere 135 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 135.
Estimated Continuous Field Runtime: 1.8 hrs
Approximately 1.8 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere 135 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere 135.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
