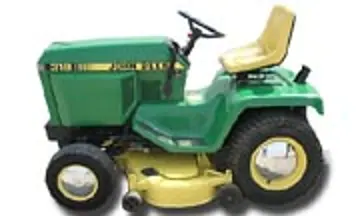

John Deere 318

1983 - 1992

300 Series

Garden tractor

Manufacturer

John Deere

Garden tractor

Built in Horicon, Wisconsin, USA

Original price

$5,099 (1983 )

$5,650 (1989 )

318

air-cooled gas

322

liquid-cooled gas

332

diesel

hydrostatic

Two-wheel drive

Power steering

Differential mechanical drum brakes

Open operator station.

Fuel

4.5 gal 17.0 L

Hydraulic system

1.2 gal 4.5 L

Capacity

1.2 gal 4.5 L

Front valves

2

Rear Type

0 OptOptional

Control

directional control

Rear lift (at 24"/610mm)

640 lbs 290 kg

Rear PTO

independent OptOptional

Clutch

electric

Rear PTO Type

2000

Front PTO

independent

Clutch

electric

Front PTO Type

pulley

Wheelbase

46 inches 116 cm

Weight

780 to 836 pounds

Front tire

16x6.50-8

Rear tire

23x10.50-12

Ground

negative

Charging system

alternator

Charging amps

20

Battery CCA

255

Battery volts

12

Lawn & Garden Tractors published in 1983, by John Deere

Lawn & Garden Tractors published in 1984, by John Deere

Lawn & Garden Tractors published in 1985, by John Deere

Lawn & Garden Tractors published in 1986, by John Deere

Lawn & Garden Tractors published in 1988, by John Deere

Lawn & Garden Tractors published in 1989, by John Deere

Lawn & Garden Equipment published in 1990, by John Deere

Lawn & Garden Tractors published in 1990, by John Deere

Lawn & Garden Tractors published in 1991, by John Deere

Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere

Consumer Products Price List published in 1983, by John Deere

Grounds Care Equipment Purchasing Guide published in 1983, by John Deere

Operators Manual 316, 318 and 420 Lawn and Garden Tractors (OM-M72236) published in 1986

Operators Manual 316, 318 and 420 Lawn and Garden Tractors (OM-M79655) published in 1989

Operator's Manual 316, 318 and 420 Lawn and Garden Tractors (OM-M87709) published in 1984

Technical Manual 316, 318 and 420 Lawn and Garden Tractors (TM1590) published in 1995

Operator's Manual 38-Inch Mid-Mount Rotary Mower (200 and 300 Series) (OMM71721) published in 1986

Operator's Manual 49 Snowthrower (OMM89078) published in 1986

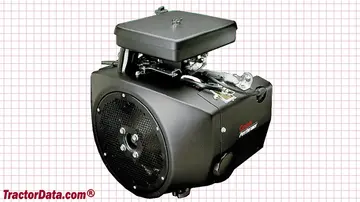

18HP Onan 709cc 2-cyl gasoline

18HP Onan 781cc 2-cyl gasoline

Manufacturer

Onan B43G

Fuel Type

Gasoline

Configuration

2-cylinder 4-valve, air-cooled horizontal-shaft opposed twin

The Onan B43G was used from 1983 through 1986, ending with tractor serial number M00318X420000.

Displacement

709 cc 43.3 ci

Bore/Stroke

3.25x2.62 inches 83 x 67 mm

Power (gross)

18 hp 13.4 kW

Air cleaner

foam and paper

Compression

6.5:1

Idle RPM

1350-3450

Starter volts

12

Sparkplug

JD AM38622

NGK BPR5EFS

Motorcraft AGRF32

Sparkplug gap

0.025 inches 0.635 mm

Oil capacity

1.75 qts 1.7 L

Manufacturer

Onan P218

Fuel Type

Gasoline

Configuration

2-cylinder, air-cooled horizontal-shaft opposed twin

The Onan P218 was used in the John Deere 318 from 1987, beginning at serial number M00318X420001, through the end of production.

Displacement

781 cc 47.7 ci

Bore/Stroke

3.25x2.88 inches 83 x 73 mm

Power (gross)

18 hp 13.4 kW

Compression

7:1

Idle RPM

1350-3450

Torque

31 lb-ft 42.0 Nm

Torque RPM

2200

Starter volts

12

Sparkplug

NGK BPR5EFS

Champion RS14YC

Sparkplug gap

0.025 inches 0.635 mm

Oil capacity

1.75 qts 1.7 L

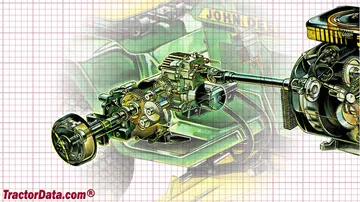

Transmission

Sundstrand Series 15 Model 90

Type

shaft-driven hydrostatic

Gears

infinite forward and reverse

Oil capacity

5 qts 4.7 L

Oil type

JD All-Weather Hydrostatic Fluid

Oil change

200 h

Sundstrand Series 15 hydrostatic unit mated to a Peerless differential.

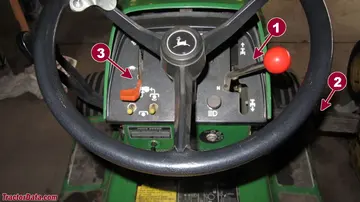

1

Motion control

2

Brakes

3

Throttle

Ag front

4.80x4.00-8

Ag rear

23x10.50

Lawn/turf front

16x6.50-8

Lawn/turf rear

23x10.50-12

Wheelbase

46 inches 116 cm

Length

68.5 inches 173 cm

Width

44 inches 111 cm

Height

44 inches 111 cm

836 lbs 379 kg

Shipping

780 lbs 353 kg

Max front axle

790 lbs 358 kg

Max rear axle

1200 lbs 544 kg

38" mid-mount mower deck

46" mid-mount mower deck

50" mid-mount mower deck

Snowblower

Blade

Front-end loader

Two tillers were available for the 318, a 48-inch shaft drive and a 30-inch hydraulic tiller (optional extension to 42 inch). The shaft-drive tiller required the optional 2000 RPM rear PTO. The hydraulic tiller operated off a separate hydraulic pump that was belt-driven in place of the mower deck. A rear-mounted finish mower was available for the 318, if equipped with three-point hitch and 2000 RPM rear PTO. Three baggers were available. A two-bag (6.5 bushel) Power Flow system had a fan that was belt-driven from the right-hand mower spindle. A three-bag (10 bushel) system had an auxiliary 6-horsepower Kawasaki engine to run the blower. A 13-bushel material collection system used an auxiliary 6-horsepower Kawasaki engine and was available with manual tilt dump or a hydraulic dump connected to a rear hydraulic outlet; it could dump 370 pounds at a height of 66 inches.
